"Quick Viewing Of Automatic H Type Layer Battery Cage"

Biggest Advantages Of Automatic H Type Layer Battery Cage

1. Compared with traditional semi automatic or A type layer battery cages, it is used for  more than 30,000 chiken farm, reduce labor cost by about 50 to 70%.

2. Compared with common stacked cage systems, the H type structure increases stocking density by about 30 to 40%.

3. Compared with manual or simple manure removal methods, the H type fully automatic layer battery system offers longer service life and a more stable poultry house environment.

Hot Sale Type Of Automatic H Type Layer Battery Cage

• How is it working?

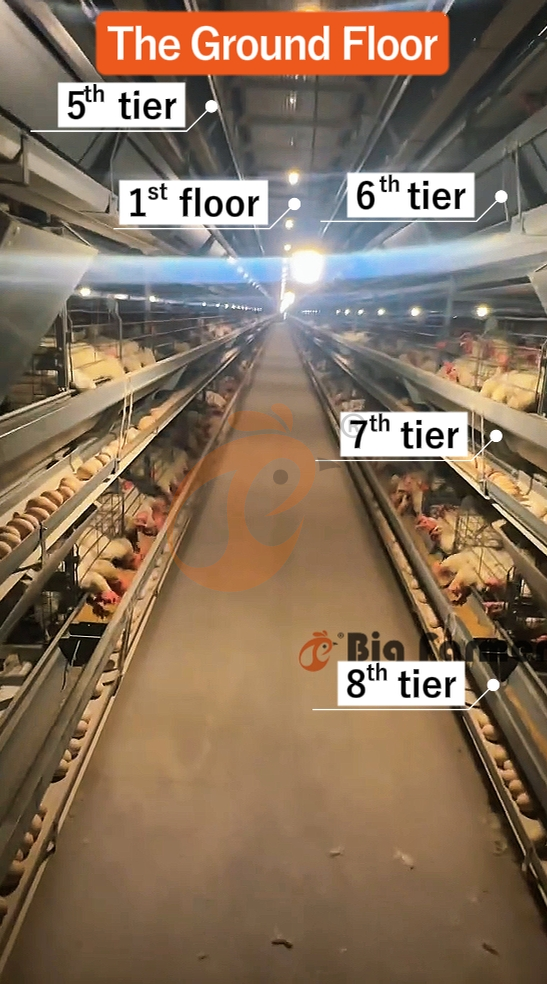

1. The H type steel cage frame supports to 16 tier cages with high structural stability.

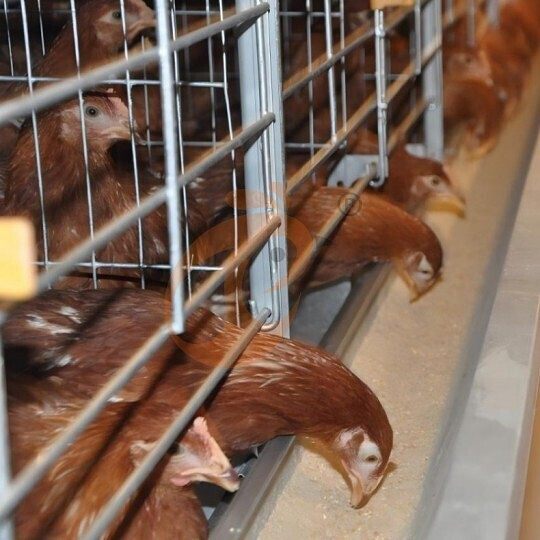

2. The automatic feeding system delivers feed evenly through chain or spiral conveyors.

3. The nipple drinking system supplies clean water with controlled pressure to each layer.

4. The manure belt system removes waste regularly to keep the poultry house clean.

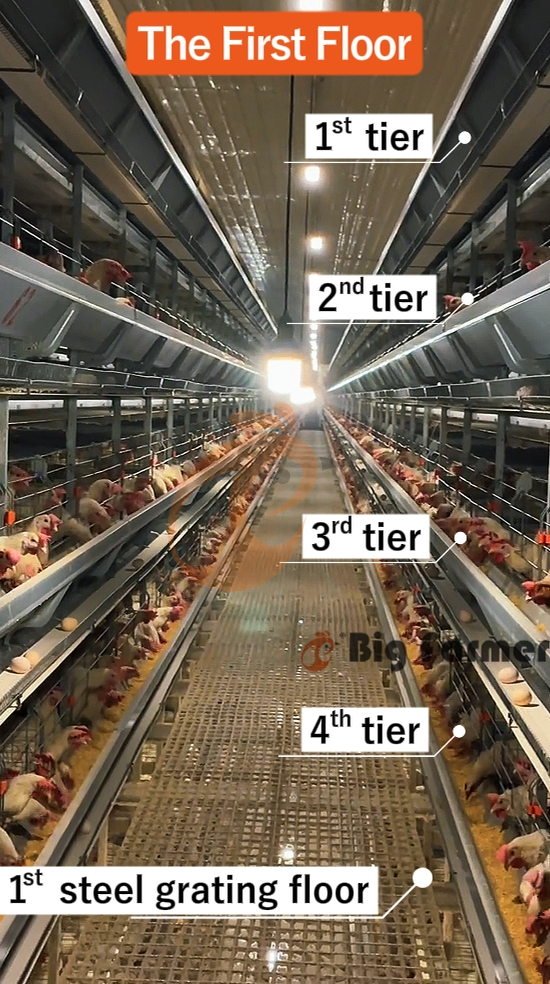

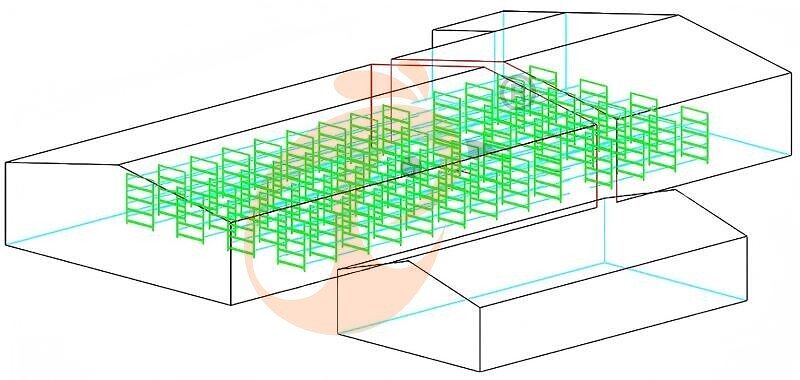

• How is it layout in poultry house?

• Hot sale demension

• Hot sale type 1

- Tiers: 4 tiers

- Capacity/set: 128 chickens

- L X W X H: 1.25m by 1.25m by 3.0m

- House Size: 50 x 10 x 5.8-17 (L x W x H): 12,672 birds

- House Size: 100 x 10 x 5.8-17 (L x W x H) 15,480 birds28,800 birds

• Hot sale type 2

- Tiers: 8 tiers

- Capacity/set: 160 chickens

- L X W X H: 1.25m by 1.25m by 7.0

- House Size: 50 x 12 x 4.15-5.25 (L x W x H): 25,344 birds

- House Size: 100 x 12 x 4.15-5.25 (L x W x H): 57,600 birds

• Hot sale type 3

- Tiers: 12 tiers

- Capacity/set: 384 chickens

- L X W X H: 1.25m by 1.25m by 10.3

- House Size: 50 x 12 x 4.15-5.25 (L x W x H): 38,016 birds

- House Size: 100 x 12 x 4.15-5.25 (L x W x H): 86,400 birds

To obtain the quotation, please Whatsapp 24 hours online/Mobile: +8618830120193

Why Choosing Taiyu Group 's Poultry Farm Equipment And Turnkey Solution?

1. The price of the same or similar European quality is 30% lower than that of Europe.

2. Our poultry farm equipment based on European design and quality standards, here are manufacture in China, Nigeria,  Tanzania, Ethiopia.

3. More experiences of poultry farm solutions and beyond 100 cases.


4. Together with Euro technology, customizes poultry farm case and poultry farm equipment based on

• The temperature and humidity of your countries

• The growth environment

• The weight of your local chickens

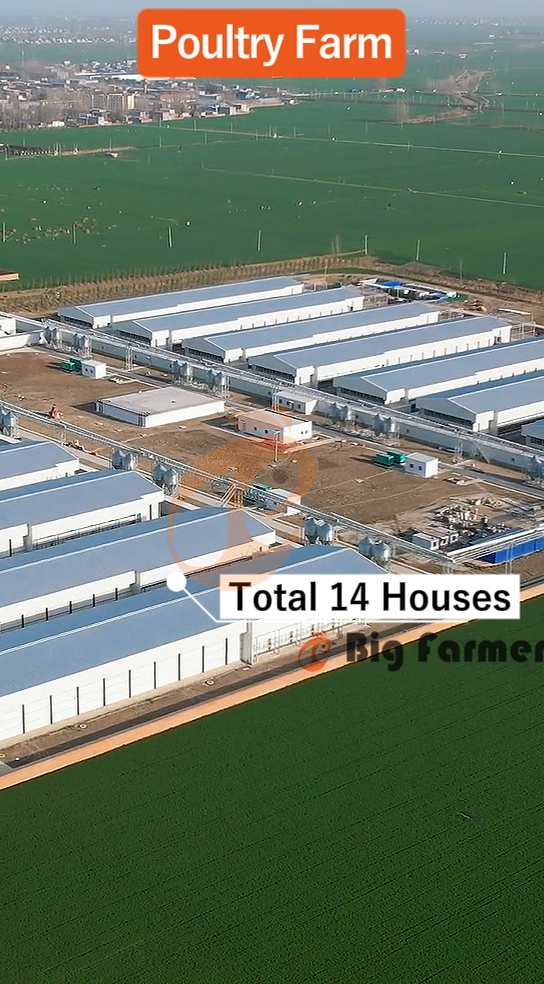

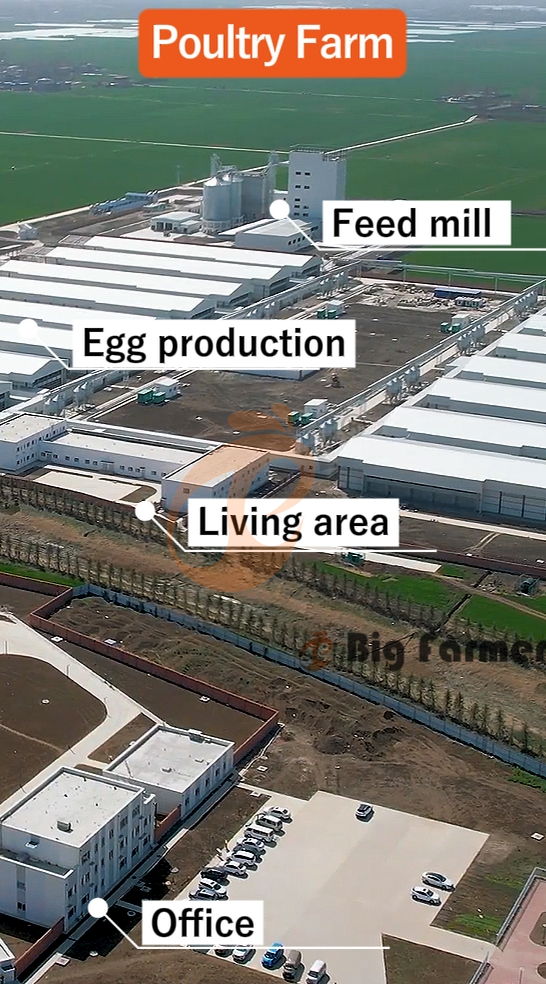

Taiyu Group Case

• Poultry Farm Case 1:

4 Tiers H Type Automatic Layer Battery Cage And Equipment

• Poultry Farm Case 2:

5 Tiers H Type Automatic Layer Battery Cage And Equipment

• Poultry Farm Case 3:

8 Tiers H Type Automatic Layer Battery Cage And Equipment

The video is suitable for viewing on vertical screen devices. Please open and watch it using a mobile phone or iPad.

Recommend Related Poultry Farm Equipment

Ventilation System

IoT Smart Poultry Farm System

Prefabricated Steel Poultry House

FAQ for H Type Fully Automatic Layer Battery Cages

Q1: Do I need other equipment besides the H type battery cages?
A1: Yes. Temperature control, ventilation, and environmental management systems are recommended to maintain optimal hen comfort, feed intake, and egg production.

Q2: How does using H type cages affect egg production?
A2: H type fully automatic cages increase production efficiency. Egg production can be 15–25% higher compared to traditional or semi-automatic cages due to better feeding, drinking, and environmental control.

Q3: What is the feed conversion ratio (FCR) in H type battery cages?
A3: With automatic feeding and drinking systems, feed conversion improves by 10–15%, meaning less feed is required per kilogram of eggs produced compared to conventional cages.

WhatsApp to +8618830120193 – Directly getting detailed introduction, newest price and your poultry house design.

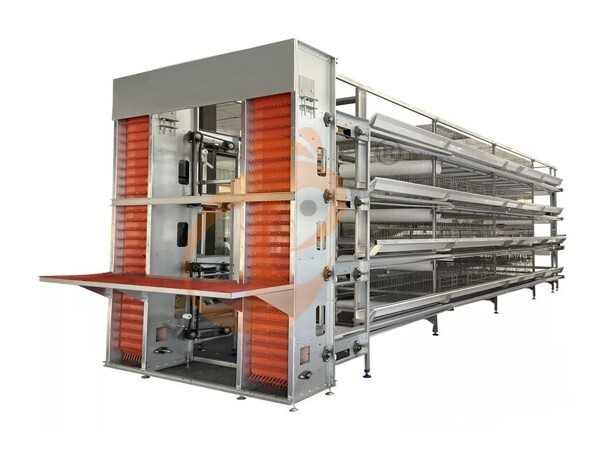

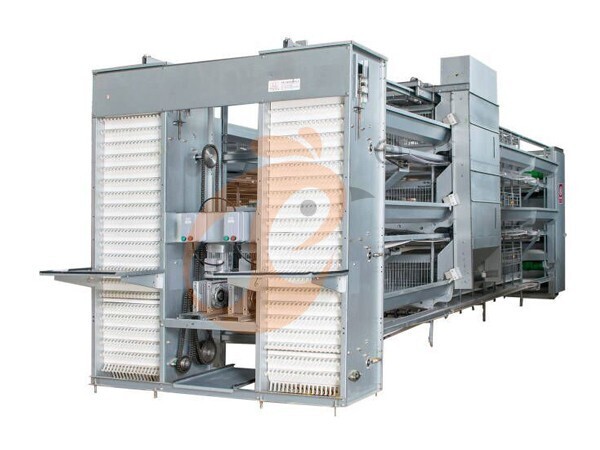

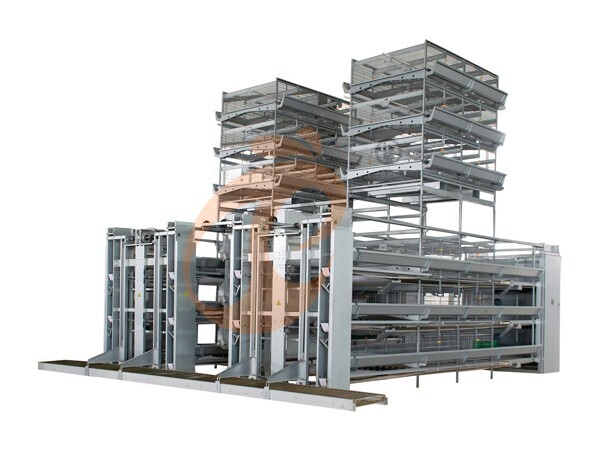

"European Standard Automatic H Frame Layer Chicken Cage For Sale"

Our design and quality of automatic H frame layer chicken cage for sale and poultry farm equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

All pictures (or videos) of this pages are the application of our automatic H frame layer chicken cage for sale in customers' poultry farm.

Our technicians have rich experience in localizing poultry farms.

1. Concise Specifications Of Automatic H Frame Layer Chicken Cage

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

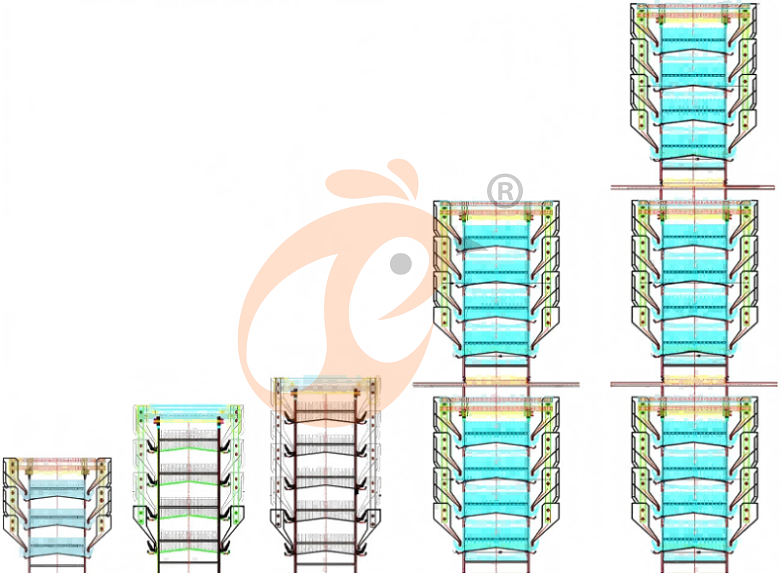

3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers, 12 Tiers

Layout Of Layer Battery Cage System In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

"Why Choose Automatic H Frame Layer Chicken Cage For Sale"

2. Why The H-Type Cage System Is The Perfect Home For Egg-Laying Hens

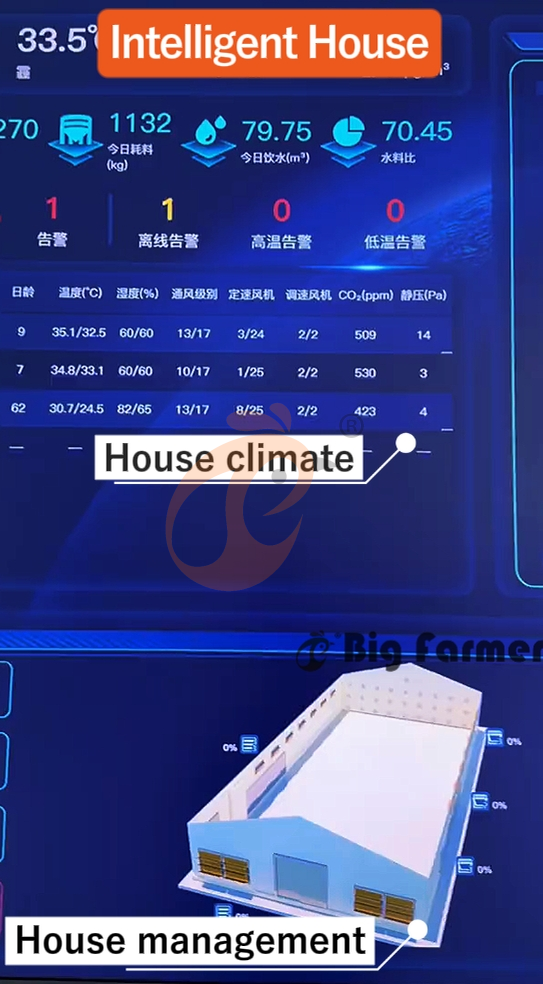

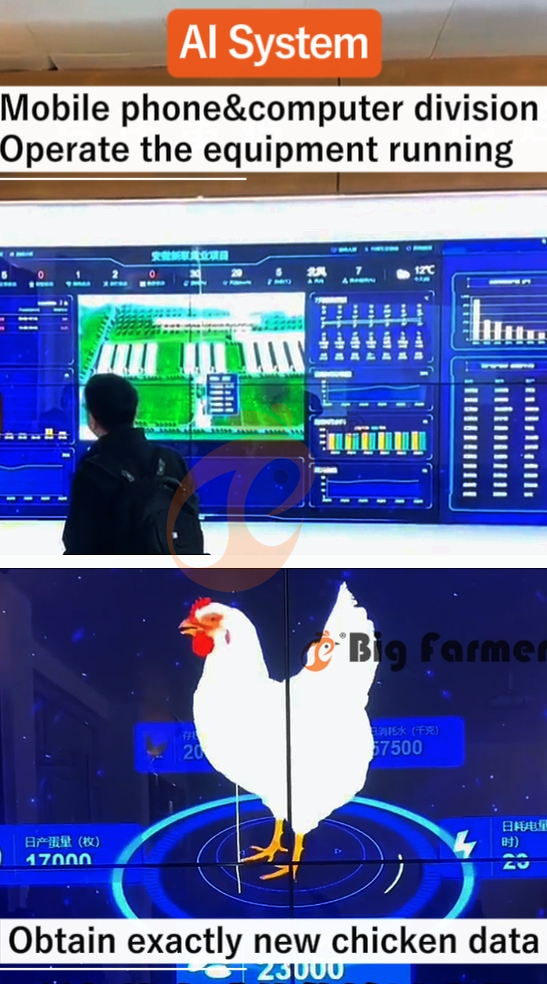

(1) IoT Smart Poultry Farm System

• Technical Data

• System Architecture: Cloud-based IoT platform

• Communication Protocols: RS485, Ethernet, Wi-Fi, 4G/5G

• Sensor Types: Temperature, humidity, CO₂, NH₃, pressure, light intensity

• Data Sampling Interval: 1–60 seconds (configurable)

• Control Mode: Automatic / Manual / Remote

• Supported Devices: Feeding, watering, ventilation, cooling pads, lighting, manure, egg collection

• Alarm Types: Temperature, humidity, gas concentration, power failure, device malfunction

• Data Storage: Cloud storage with local backup

• User Access: Web platform and mobile application

• System Expansion: Modular, scalable architecture

• Working Principle

• Sensors collect real-time environmental and equipment data

• Data is transmitted to the controller and cloud platform

• Control logic automatically adjusts farm equipment based on preset parameters

• Abnormal conditions trigger alarms and remote notifications

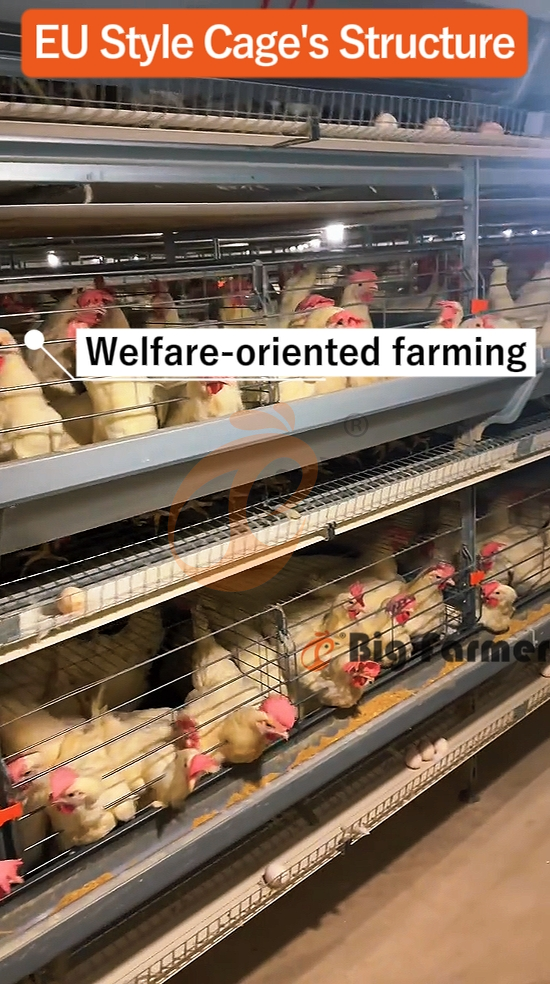

(2) Cage Body Structure

• Technical Data

• Material: Hot-dip galvanized steel

• Zinc Coating Thickness: 200–450 g/m²

• Corrosion Resistance: 20–25 years

• Egg-Rolling Angle: 7–9°

• Load-Bearing Frame: Flat-iron galvanized steel

• Frame Load Capacity: 800–1200 kg per column

• Working Principle

• Hot-dip galvanized steel provides long-term corrosion protection

• Inclined cage bottom allows eggs to roll automatically by gravity

• Galvanized flat-iron frame evenly distributes load and ensures structural stability

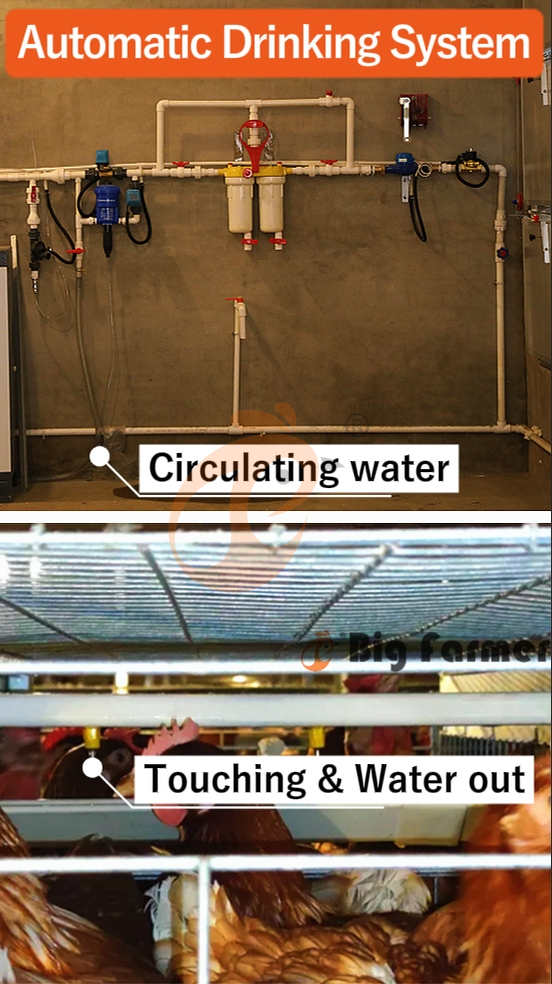

(3) Automatic Watering System

• Technical Data

• Drinker Type: Nipple drinking system

• Nipple Flow Rate: 20–30 ml/min

• Water Pressure: 0.2–0.5 bar

• Height Adjustment Range: 0–35 cm

• Drip Cup Efficiency: >90% water waste reduction

• Ammonia Reduction: 20–35%

• Water Supply Capacity: 3,000–4,500 birds per line

• Nipple Material: SUS304 stainless steel

• Working Principle

• Birds activate nipples to obtain water on demand

• Pressure regulator ensures stable and uniform water flow

• Adjustable height adapts to different bird ages

• Drip cups reduce water spillage and floor moisture

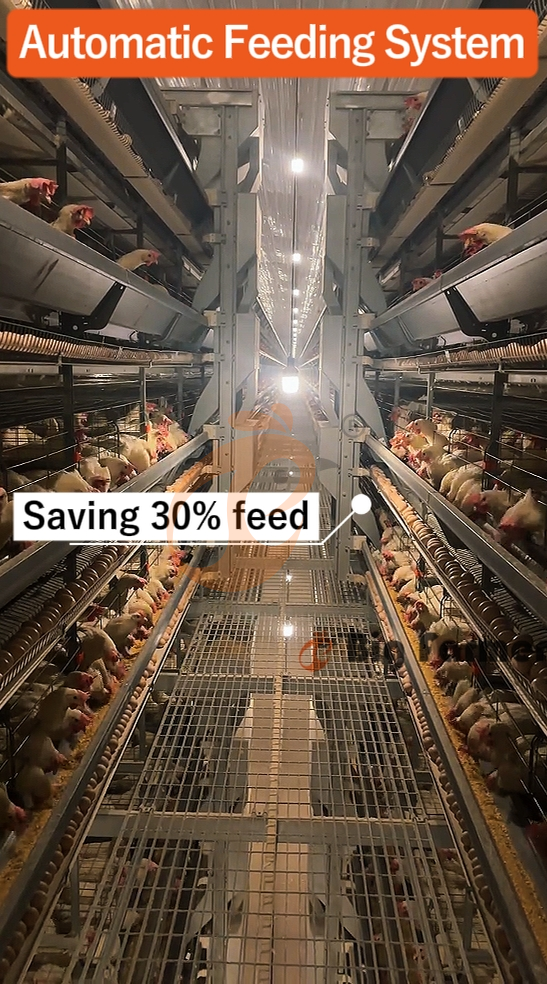

(4) Automatic Feeding System – Type 1 Spiral / Screw

• Technical Data

• Feeding Type: Spiral / Screw system

• Feed Delivery Speed: 35–45 m/min

• Transport Capacity: 600–900 kg/hour

• Max House Length: 120–150 m

• Feed Distribution Error: <5%

• Motor Power: 0.75–1.5 kW

• Working Principle

• Motor-driven spiral continuously transports feed from silo to feeders

• Enclosed pipe design prevents feed contamination and separation

• Uniform outlet design ensures even feed distribution along the line

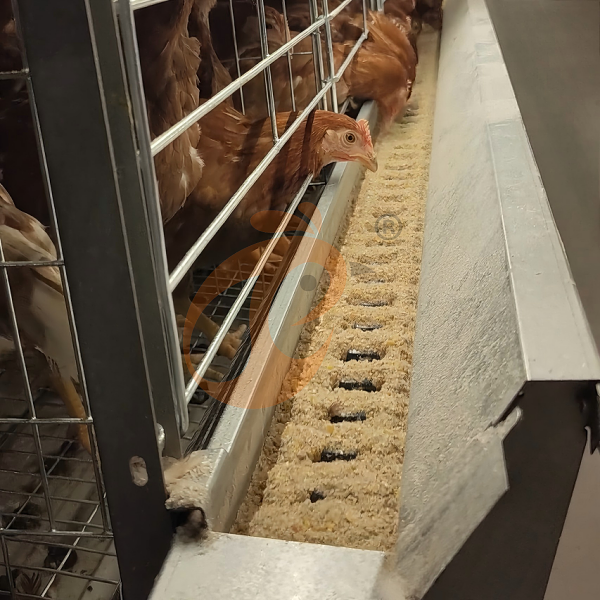

(5) Automatic Feeding System – Type 2 Chain

Type 2 Chain Feeding System

• Technical Data

• Feeding Type: Chain feeding system

• Chain Speed: 20–30 m/min

• Feed Uniformity Error: <3%

• Feed Wastage Reduction: 5–12%

• Motor Service Life: ≥20,000 hours

• Working Principle

• Motor drives chain loop to move feed inside troughs

• Continuous circulation ensures uniform feed supply

• Reduces feed accumulation, empty troughs, and wastage

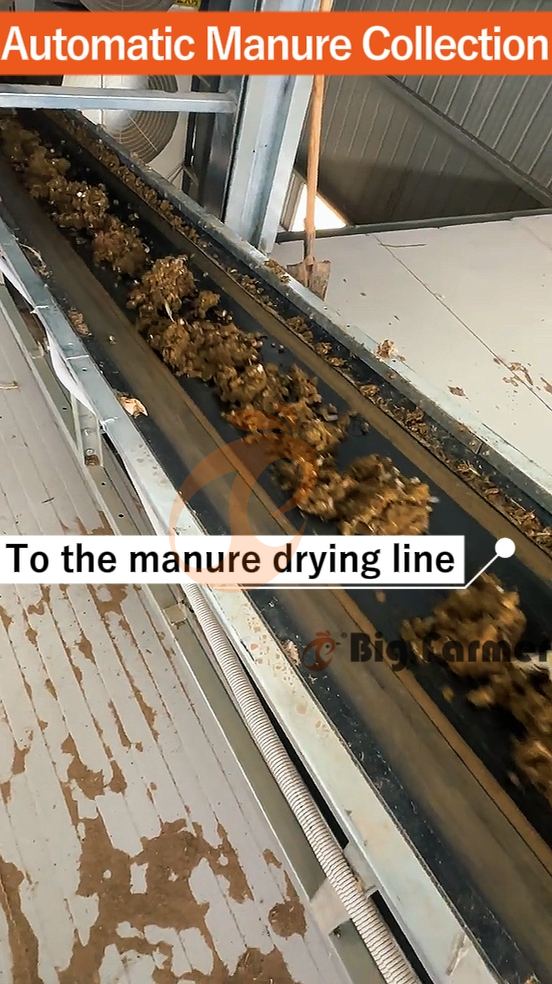

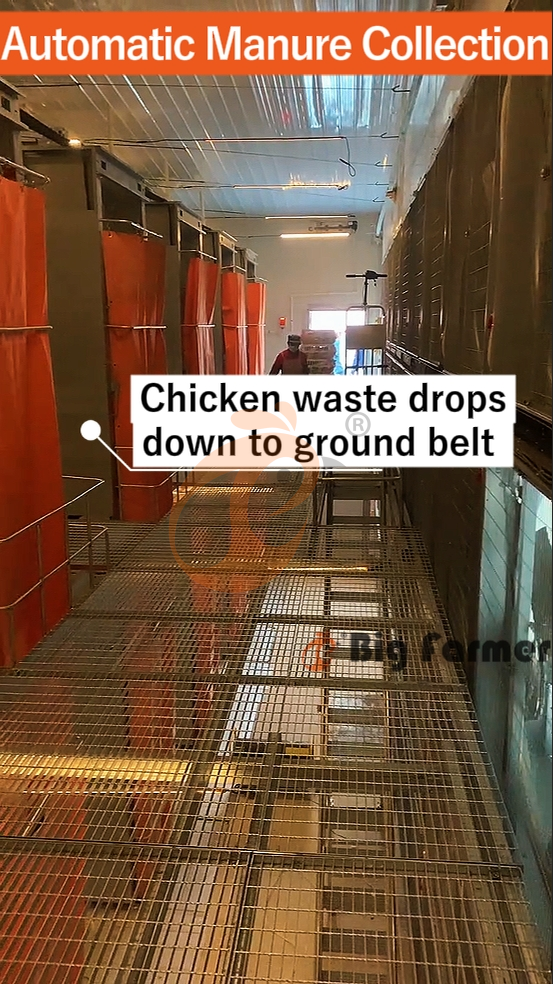

(6) Manure Removal System

• Technical Data

• Belt Material: PP reinforced belt

• Belt Thickness: 1.0–1.2 mm

• Cleaning Accuracy: >98%

• Manure Capacity: 8–12 tons / 10,000 birds / day

• Moisture Reduction: 40–60%

• Belt Speed: 2.5–10 m/min

• Motor Power: 0.55–0.75 kW per belt

• Working Principle

• Manure falls directly onto belts installed under cages

• Belts operate periodically to discharge manure outside the house

• Short manure retention time reduces moisture and ammonia emission

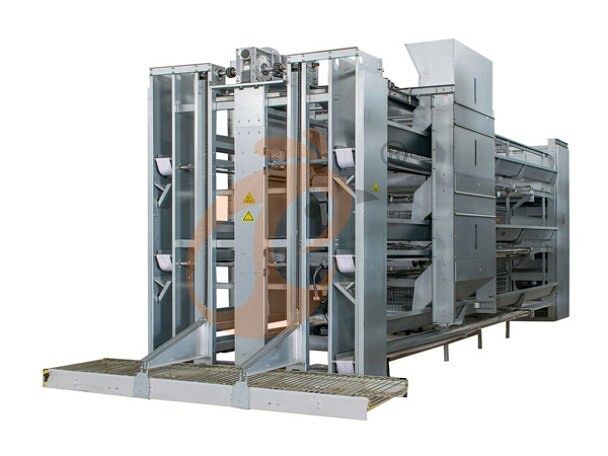

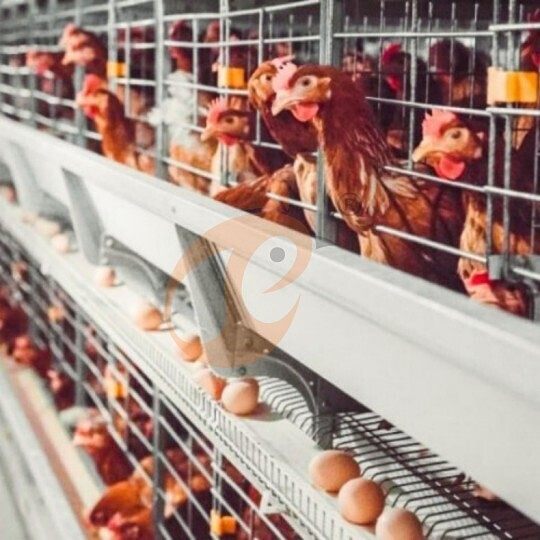

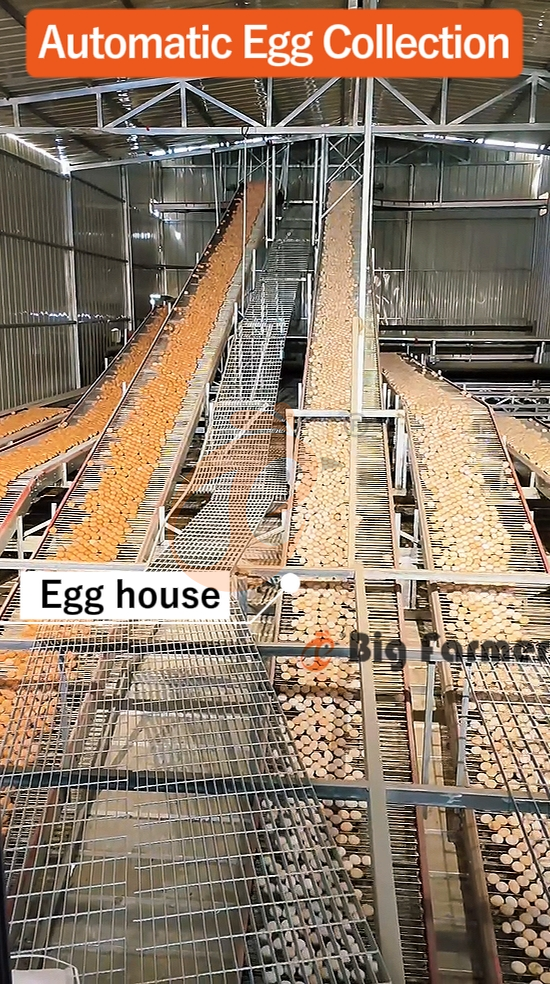

(7) Automatic Egg Collection System

• Technical Data

• Egg Belt Width: 350–550 mm

• Vertical Lift Capacity: 15,000–30,000 eggs/hour

• Horizontal Speed: 6–20 m/min

• Egg Breakage Rate: <0.8%

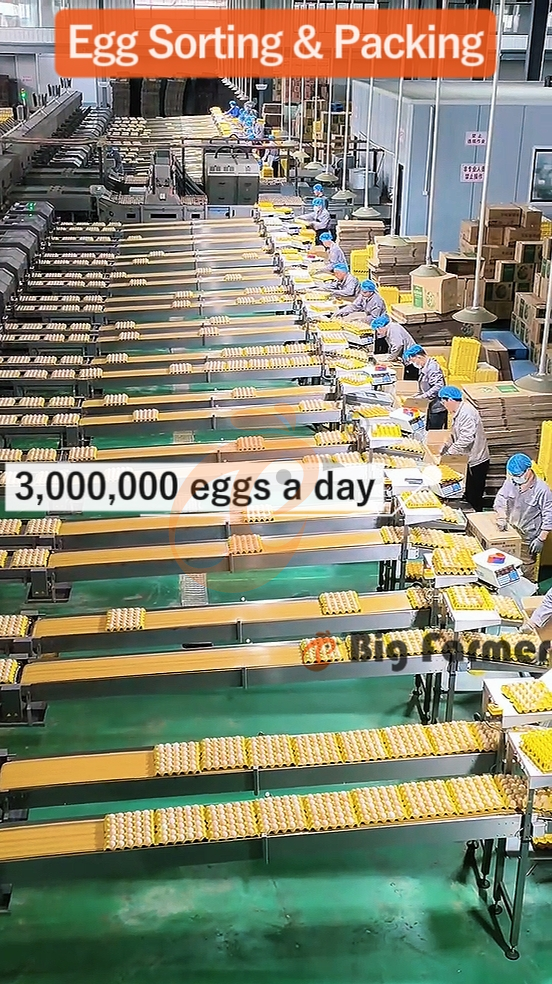

• Central Sorting Capacity: 10,000–200,000 eggs/hour

• Working Principle

• Eggs roll from cage floors onto egg belts

• Horizontal belts transport eggs to the collection point

• Vertical elevators lift eggs to the central system

• Low-speed operation minimizes vibration and breakage

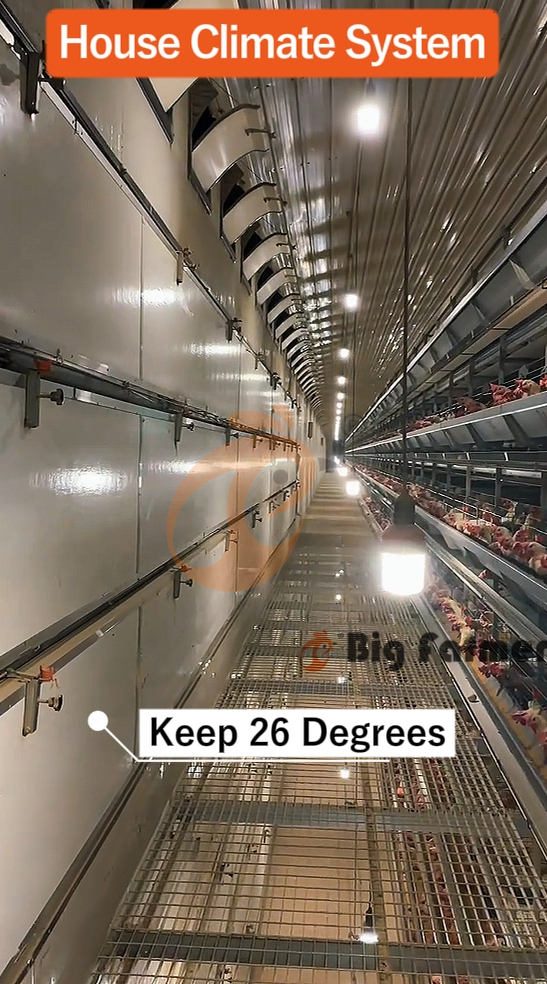

(8) Environmental Control System

• Technical Data

• Control Scope: Temperature, humidity, air quality, airflow

• Temperature Control Range: 20 to 40°C

• Temperature Control Accuracy: ±0.1°C

• Humidity Control Range: 30–90% RH

• Humidity Control Accuracy: ±3% RH

• Air Quality Monitoring: CO₂, NH₃

• Ventilation Type: Negative pressure / tunnel ventilation

• Controlled Equipment: Exhaust fans, air inlets, cooling pads, heaters, circulation fans

• Control Mode: Automatic / Manual / Remote

• Alarm System: Over-temperature, high humidity, gas concentration, equipment failure

• Energy Saving Performance: 18–30% annually

• Working Principle

• Sensors continuously monitor environmental parameters inside the house

• Controller analyzes real-time data against preset target values

• Ventilation, cooling, heating, and air inlet systems are automatically adjusted

• Alarm system activates when parameters exceed safety limits

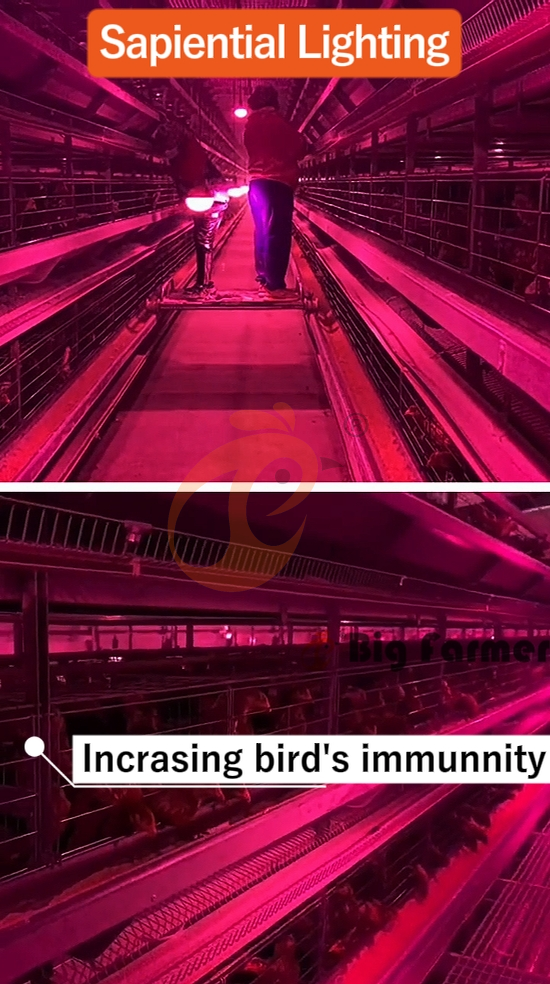

(9) Lighting System

• Technical Data

• LED Power Consumption: 3–6 W/m

• Light Intensity (Rearing): 8–12 lux

• Light Intensity (Laying): 14–18 lux

• Programmable Cycles: 16–24 periods/day

• Working Principle

• Controller adjusts light intensity and photoperiod

• Different lighting programs support rearing and laying stages

• LED lighting provides uniform illumination with low energy consumption

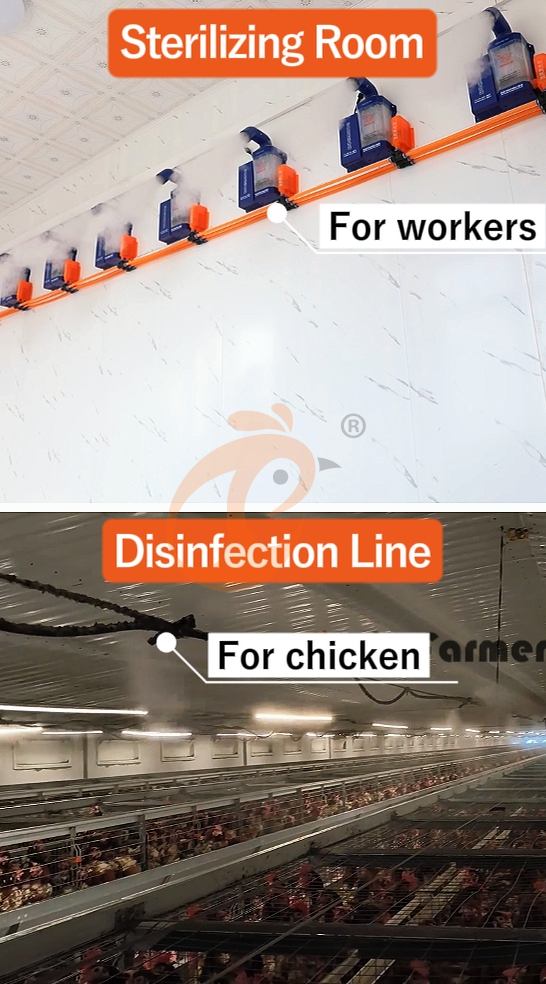

(10) Chicken House Misting Disinfection System

• Technical Data

• System Type: High-pressure mist disinfection system

• Operating Pressure: 30–60 bar

• Nozzle Type: Anti-drip stainless steel disinfection nozzle

• Droplet Size: 10–30 microns

• Disinfectant Compatibility: Quaternary ammonium, peracetic acid, iodine-based solutions

• Solution Consumption: 2–5 L/hour per nozzle

• Coverage Area: 200–400 m² per line

• Control Mode: Automatic / Manual / IoT integration

• Filtration System: Multi-stage filtration to protect nozzles

• Application Frequency: Programmable according to biosecurity plan

• Working Principle

• High-pressure pump delivers disinfectant solution to spray pipelines

• Nozzles atomize disinfectant into fine mist

• Mist remains suspended to ensure uniform surface and air contact

• Programmable operation achieves effective and consistent disinfection

"The Advantages Automatic H Frame Layer Chicken Cage For Sale"

4. Optimizing Egg Production: Efficiency Meets Comfort

(1) Automation That Improves Egg Quality

• Consistent lighting: By mimicking natural light patterns, hens experience smoother transitions into laying maturity.

  This consistent lighting cycle encourages better egg production and shell quality.

• The system ensures that every hen receives the right amount of nutrients at the right time, avoiding issues like feed competition or water shortages that can stress the birds and impact egg output.

(2) Efficient Resource Use

• Feed conversion efficiency: With the H-type system, feed-to-egg conversion is optimized with lower waste and better utilization of nutritional resources.

  The FCR (Feed Conversion Ratio) improves from 2.0–2.2 in traditional systems to 1.7–1.8, meaning hens produce more eggs for every unit of feed.

• Water usage: Nipple drinkers prevent water wastage, ensuring that each bird gets the correct amount of hydration, leading to healthier, more consistent laying rates.

5. Health And Welfare: A Key Factor In Higher Egg Production

The H-type cage system isn't just about increasing production; it's about ensuring that hens have optimal living conditions that enhance their well-being.

This leads to higher production rates, stronger eggs, and a healthier flock.

Key Metrics – H-Type Cage Vs. Traditional Cage Systems

This results in better egg quality, lower mortality, and more consistent production—all while reducing labor costs.

6. Extensible And Sustainable: The Future Of Poultry Farming

Sustainability Impact – H-Type Cage System Vs. Traditional Systems

The system supports expansion without sacrificing environmental standards, ensuring that farms can meet increased demand while keeping their operations efficient and eco-friendly.

7. Recommended Related Chicken Cage

To learn more, please visit product list...

8. Our Brief Introduction

(1) Headquarter and branchs are studying with each other, keeping continuous communication with Europe and USA.

(2) Our design and quality of poultry farm equipment and chicken poultry cage based on EURO standard.

(3) Offer modern AI management poultry farm consulting and turnkey project.

• Hong Kong Headquarter Taiyu Industrial Group CO., LTD

• China Hebei Best Machinery And Equipment CO., LTD

• Nigeria Vanke Machinery And Equipment CO., LTD

• Tanzania Best Machinery And Equipment CO., LTD

• Ethiopia Best Hebei Machinery Manufacturing PLC

(4) Offer Modern Poultry Farm Scheme

We use artificial intelligence to chicken cage, poultry farm equipment.

it makes poultry farm more intelligent and modern, such as

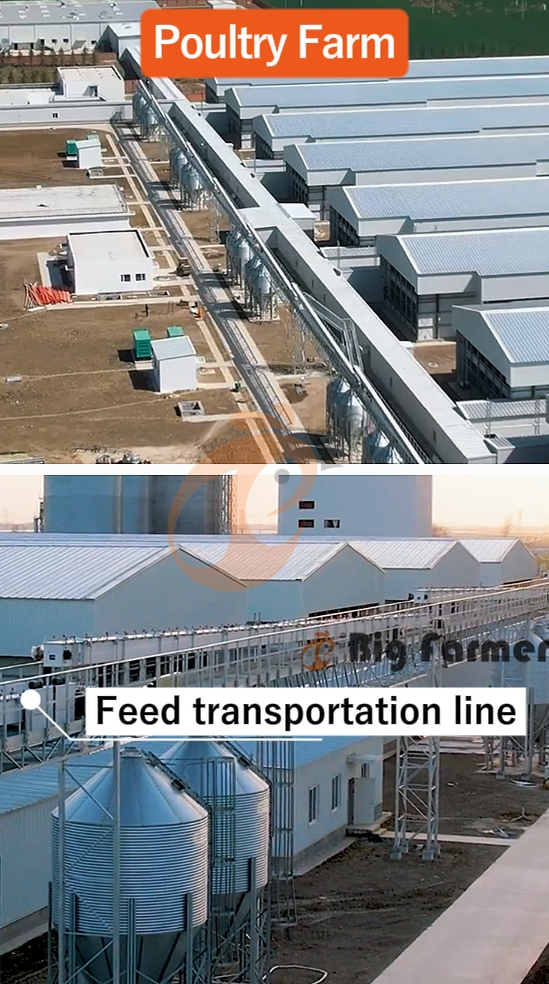

• AI-Powered recyclable poultry farm

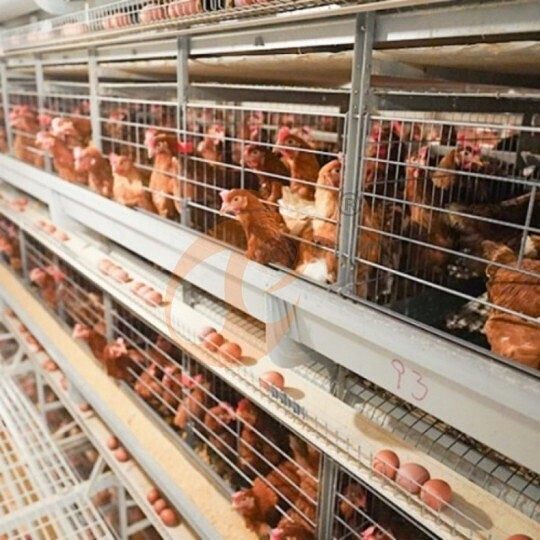

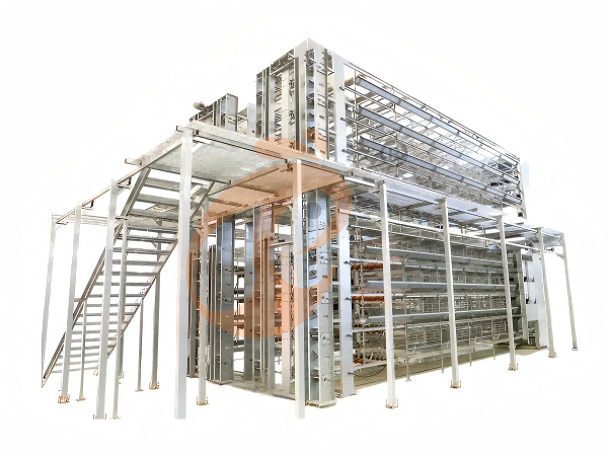

• AI-Managed automatic chicken cage system

• AI-Managed poultry farm equipment

(5) Reason To Choose Us

• Every year, we go to Europe to explore new technologies and upgrade our equipment.

• 10%-30% lower price based on European standard and quality.

• With our own factory, we offer private customization services.

• Professional engineers from both domestic and international sources, along with an installation team, ensuring worry-free after-sales service.

• Every year many customers visit us, and we visit customers and their farms too, welcome you!
