Quick Viewing Of H Type Automatic Broiler Battery Cage System
Current Status Of Commercial Broiler Farming Equipment Worldwide
In today's global commercial poultry industry, broiler farming has become increasingly automated and large-scale.
For commercial broiler farms with more than 10,000 birds, based on over 20 years of multi-country experience, our company has identified three mainstream H-type broiler cage designs that are widely accepted and preferred by local markets worldwide.
Three Main Types
Pull-out slat harvesting system
Chain-type automatic harvesting system
Without automatic harvesting system
There are equipped with automatic systems of feeding, drinking, manure cleaning, cage system and smart poultry system (optional accessories).
Some customers choose environmental control system such as automatic house lighting, heating device and ventilation systems. These are used in temperate and frigid climates, while in tropical climates they are applied as appropriate.
Application Guide Of 3 Types Of H Type Commercial Broiler Cage
To help you better understand these poultry equipment, we will present some short videos and real farm data.
Video 1: Taiyu (HK)’s Turnkey Case Of Pull-Out Slat Harvesting System
The video part of pull-out slat harvesting system are from 00:30s to 01:10s.
1. Key Advantages

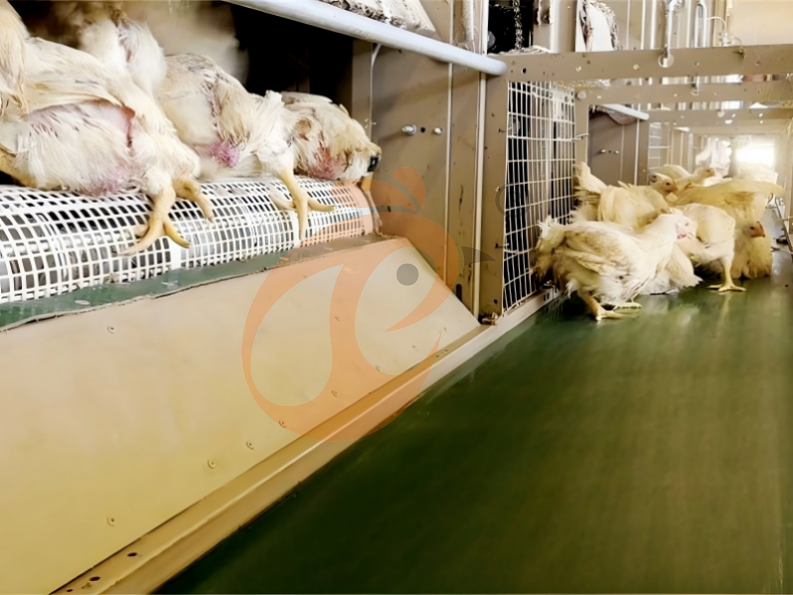

Pull out the detachable slat tray, chickens fall onto the manure belt, to end lift device for collection
Eliminates manual catching from each cage
Reduces labor demand by 50–60%
Achieves harvesting efficiency of 5,000–8,000 birds/hour
Lowers injury rate to ≤2–3%
Improves overall harvesting speed by 2–3 times
Ideal for commercial poultry farms seeking higher efficiency
2. Price Range
The middle one in 3 types
If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 135 8248 7372, contact us now.
Video 2: Taiyu (HK)’s Turnkey Case Of Chain-Type Automatic Harvesting System
The video part of chain type harvesting system are from 00:35s to 01:59s.
1. Key Advantages

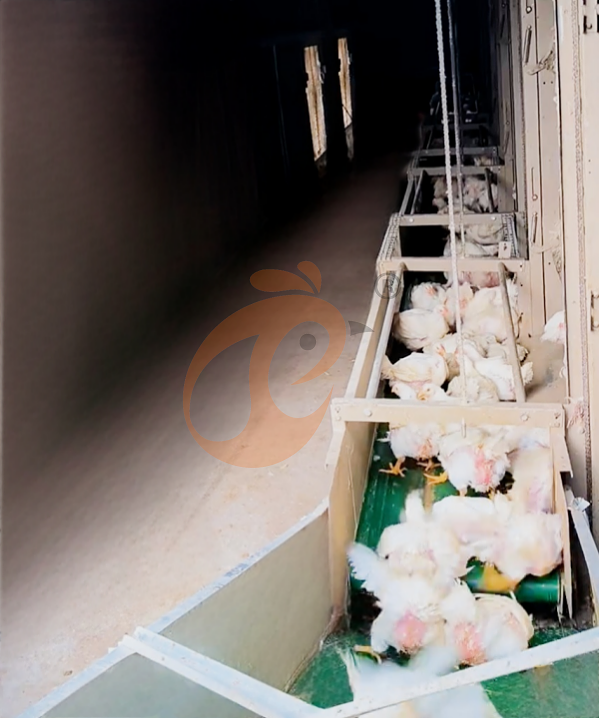

During harvesting, the side mesh rises, Chickens are transported to end lift device for collection
Reduces labor demand by 50–70%
Improves harvesting efficiency by 2–3 times
Achieves a collection speed of 6,000–10,000 birds/hour
Minimizes injury rate to ≤1–2%
Suitable for large-scale commercial poultry farms (30,000+ birds)
2. Price Range
The highest one in 3 types
Video 3: Taiyu (HK)’s Turnkey Case Of Broiler Cages Without Automatic Harvesting System
Smart poultry system are from 00:03s to 00:06s.
Intelligent automatic timed and quantified feeding system are from 00:17s to 00:35s.
Ventilation systems are from 00:52s to 01:03.
1. Key Advantages
Integrated automatic feeding, drinking, and manure cleaning systems, manual chicken collection
Q235 steel with hot-dip galvanization or aluminum-zinc coating
Service life of 15–20 years
Fully automatic system reduces labor
2. Price Range
The lowest one in 3 types
Broiler Capacity In A House
These three types of equipment have basically the same broiler stocking capacity under the same chicken house dimensions.
80 x 11 x 4.1-12 (L x W x H): 23,000 - 31,000 birds
100 x 11 x 4.1-12 (L x W x H): 29,000- 40,000 birds
If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 135 8248 7372, contact us now.
Why Choosing Taiyu (HK) Group
Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...
The Advantage Of Taiyu (HK) Broiler Cage
Quality and design of Taiyu (HK) broiler cage: European standards
Lifespan of Taiyu (HK)'s pullet cage: 25+ years
Delivery from local factory: Hong Kong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)
Our design and quality of automatic harvesting H frame broiler battery cage system and poultry farm equipment based on European and USA standard.
24 hours Reception WhatsApp NO. : +8613582487372.
All pictures (or videos) of this pages are the application of our automatic harvesting H frame broiler battery cage system in customers' poultry farm.
Our technicians have rich experience in localizing poultry farms.

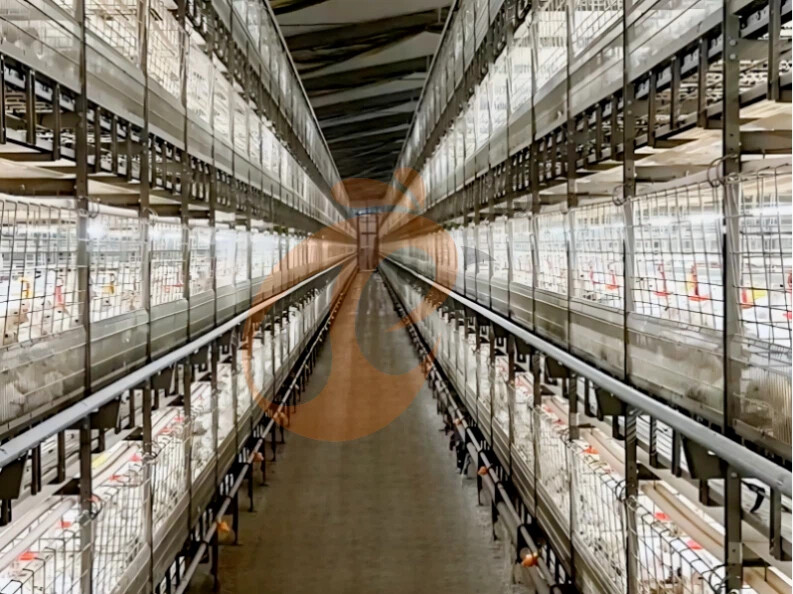

Two Rows
"European Standard Automatic Harvesting H Frame Broiler Chicken Cage For Sale"

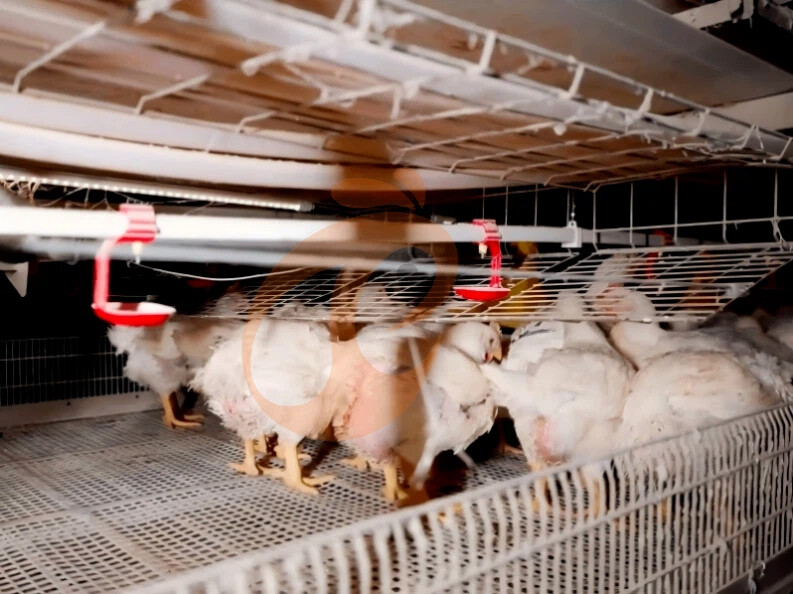

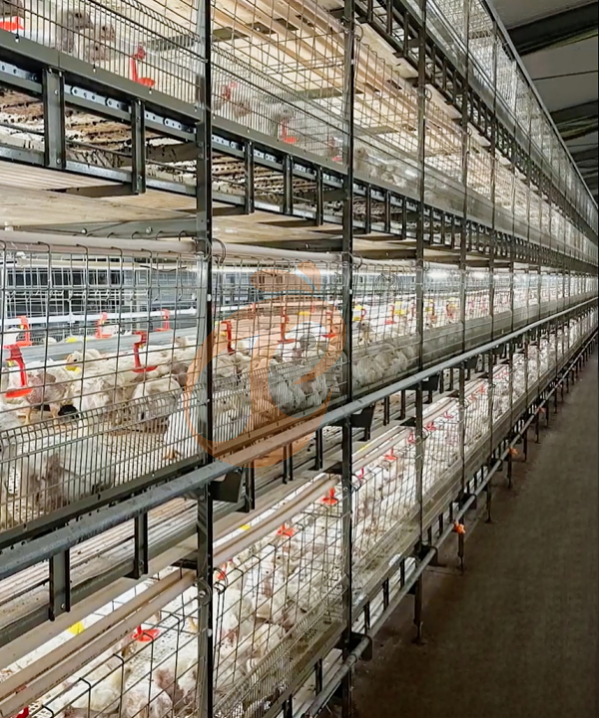

1. Concise Specifications Of Automatic Harvesting H Frame Broiler Chicken Cage For Sale
For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.
3 Tiers

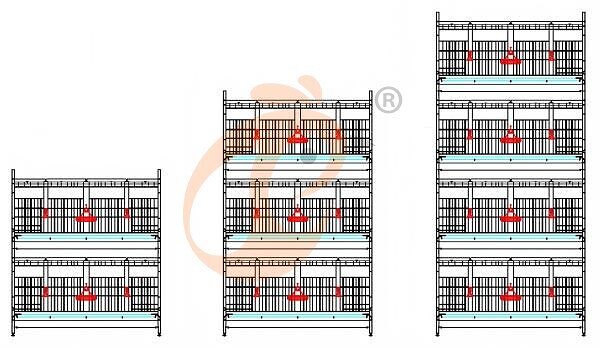

2 Tiers, 3 Tiers And 4 Tiers

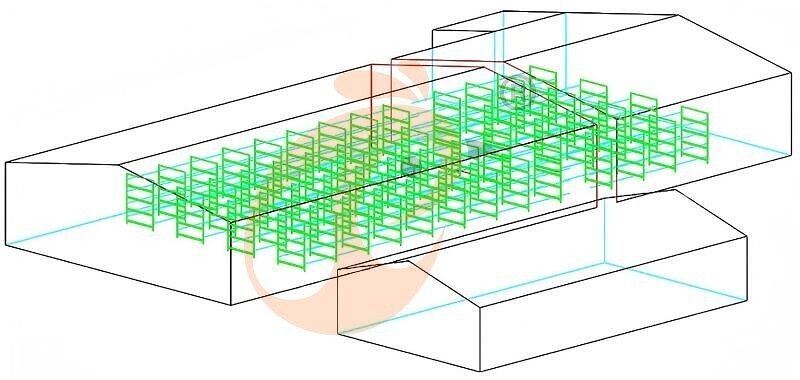

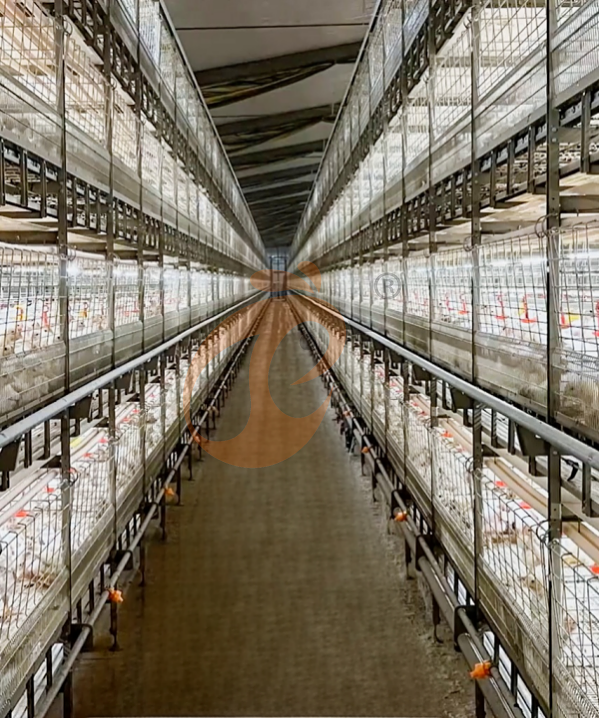

Layout Of Battery Cage In Poultry House
(1) Recommended House Size and Bird Capacity
Data is for reference only. Swipe horizontally to view full table.
(2) Technical Specifications
Data is for reference only. Swipe horizontally to view full table.
"Why Choose Automatic Harvesting H Frame Broiler Chicken Cage For Sale"
2. Cage Structure And System Compatibility Modules
Automatic H-type Cage
Modular Cage Structure Parameter
The H-type cage system emphasizes both operation and automation compatibility, enabling ease of maintenance while seamlessly integrating with harvesting systems.
"Tips Of Managing Poultry Farm And Poultry Farm Equipment"
3. Smart Automation: Coordinated Modules Driving The Entire Cycle

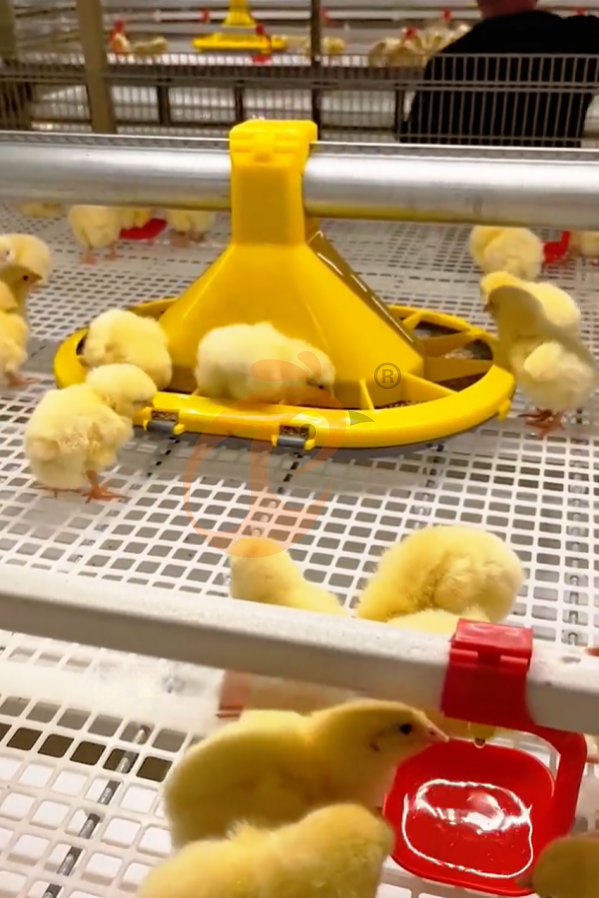

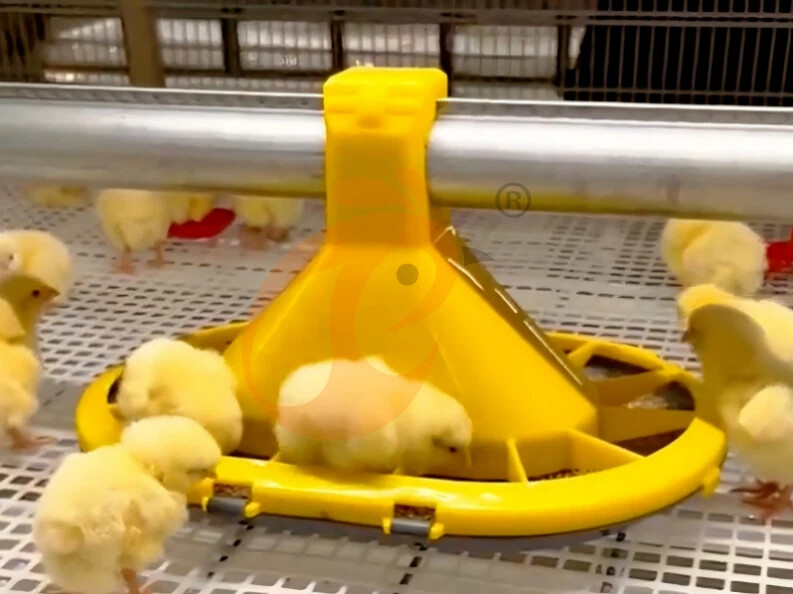

(1) Feeding System
This system utilizes a dual-channel chain-type feed cart that controls feed volume and intervals autonomously.

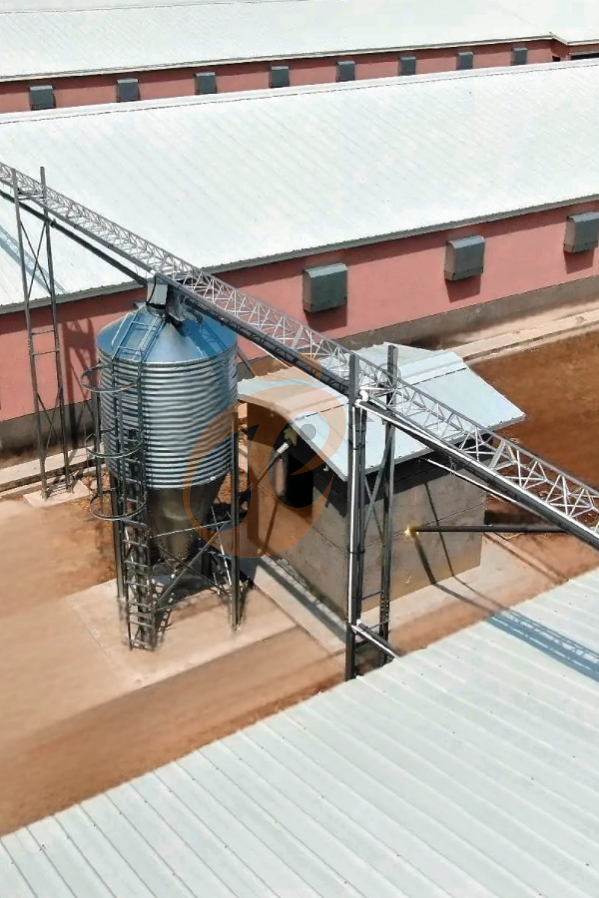

Standard configurations include 3–20-ton silos (or custom sizes) connected to a main auger line, enabling 24/7 uninterrupted feeding.

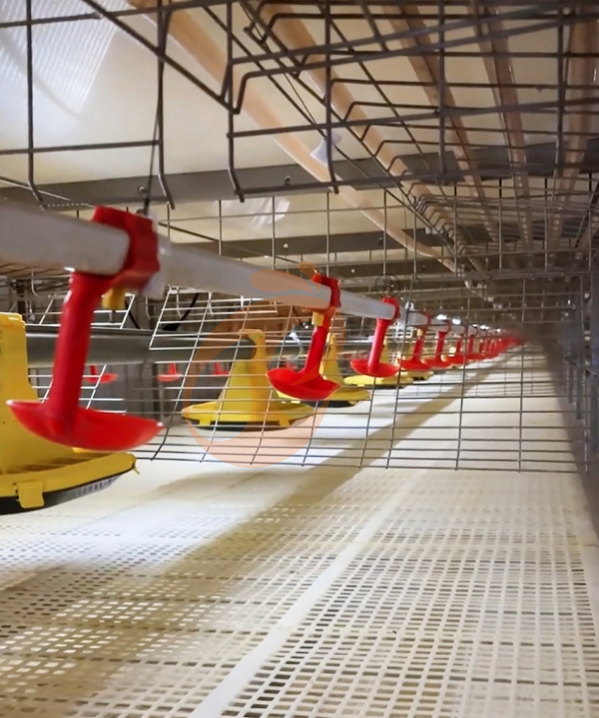

(2) Drinking System

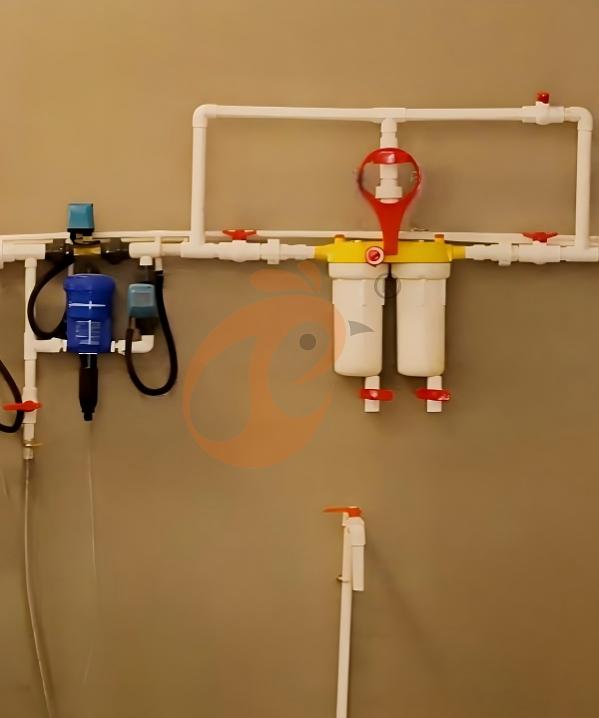

The system features imported nipple drinkers, reinforced PVC pipelines, and external stainless-steel pressure regulators.
Each line is independently controllable for easier flushing and maintenance, ensuring hygienic water delivery.

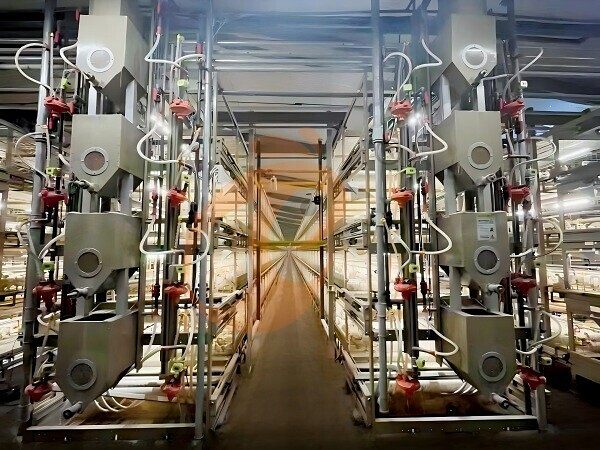

Ending Water And Feed Device
(3) Safety Features: Built-In Reversibility
Every command includes a countdown + manual override to prevent errors
Execution time and outcome auto-logged; daily reports generated
Data exportable to Excel or ERP systems
Backup power and dual-circuit designs ensure safe operation during outages.
4. Automatic Manure Transfer System: Closed-Loop Waste Handling

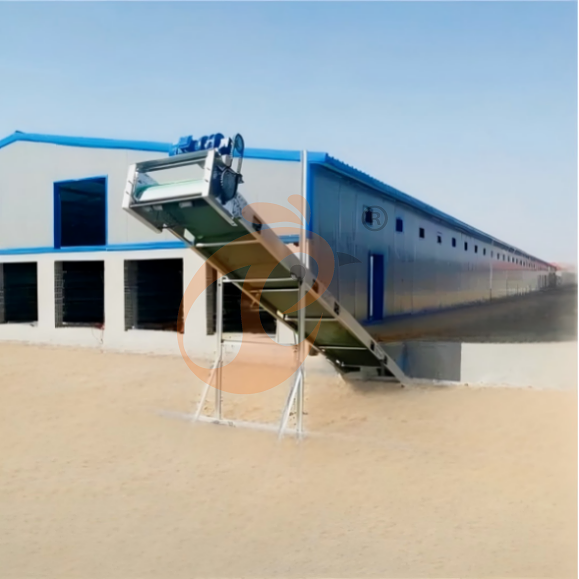

To Outside Of Broiler House

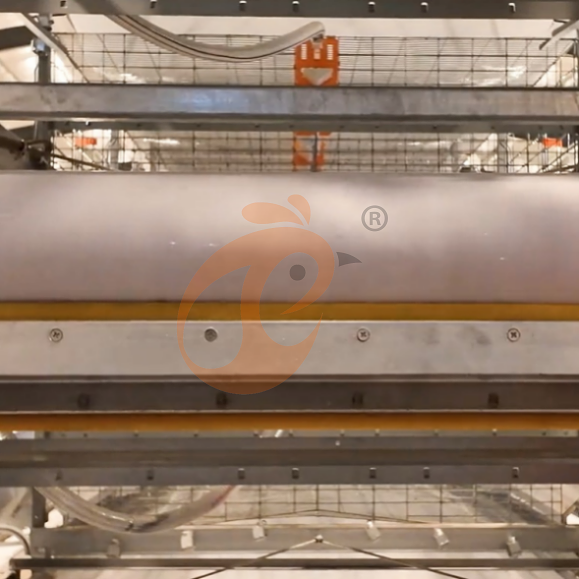

(1) Multi-Layer Operation: Direct Belt Collection

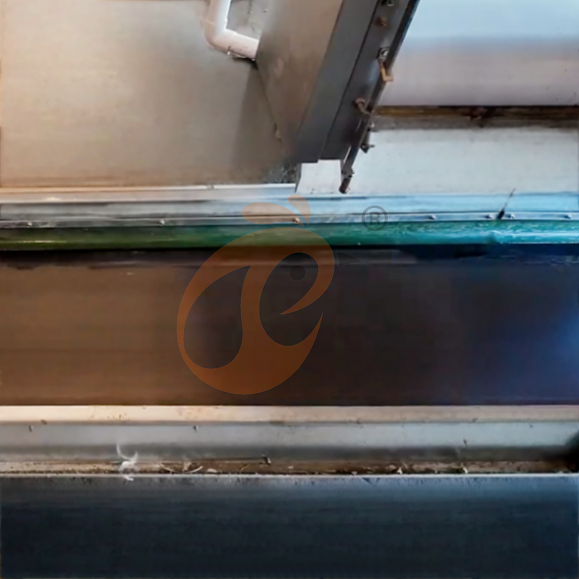

Each tier features 1.2 mm thick high-tensile PP manure belts (>200 MPA strength)
Equipped with auto-aligning limit wheels to prevent belt deviation
All tiers synchronized: e.g., every 2 hours, 6–8 min per run, ensuring waste is cleared before buildup
Sloped belt structure reduces accumulation and facilitates clean transfer
(2) Drive System: High Torque & Anti-Corrosion Components
(3) Integrated With Ventilation: Humidity Control + Ammonia Reduction
Ventilation fans start up 3 minutes in advance before belt movement to reduce humidity
Post-cleaning airflow maintains ammonia below 30 ppm
Ammonia sensors automatically trigger early cleaning + forced ventilation if needed

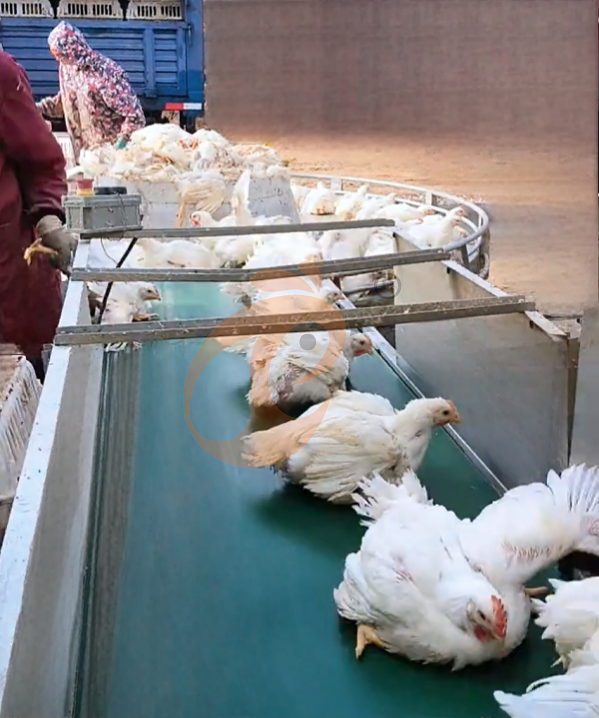

5. Automatic Harvesting Unit: The Intelligent Chicken Collection System
(1) Structural Design: End-Mounted Access + Full Row Pushers
Each cage tier has auto-opening rear doors aligned to the central collection lane
Once a harvest signal is received, the push mechanism gently moves birds onto the conveyor
The entire handoff is automatic—no grabbing, no stress, no human contact
(2) Five-Step Harvest Workflow
This harvesting system reduces stress, maintains meat quality, and ensures process hygiene.
6. Our Brief Introduction
(1) Headquarter and branchs are studying with each other, keeping continuous communication with Europe and USA.
(2) Our design and quality of poultry farm equipment and chicken poultry cage based on EURO standard.
(3) Offer modern AI management poultry farm consulting and turnkey project.
Tanzania Branch
Hong Kong Headquarter Taiyu Industrial Group CO., LTD
China Hebei Best Machinery And Equipment CO., LTD
Nigeria Vanke Machinery And Equipment CO., LTD
Tanzania Best Machinery And Equipment CO., LTD
Ethiopia Best Hebei Machinery Manufacturing PLC
(4) Offer Modern Poultry Farm Scheme
We use artificial intelligence to chicken cage, poultry farm equipment
it makes poultry farm more intelligent and modern, such as
AI-Powered recyclable poultry farm
AI-Managed automatic chicken cage system
AI-Managed poultry farm equipment
(5) Reason To Choose Us
Every year, we go to Europe to explore new technologies and upgrade our equipment
USA Technical Support
10%-30% lower price based on European standard and quality
With our own factory, we offer private customization services
Factory
Professional engineers from both domestic and international sources, along with an installation team, ensuring worry-free after-sales service.
Every year many customers visit us, and we visit customers and their farms too, welcome you!
(6) Contact Us Now
For fast response, feel free to contact us directly via WhatsApp at +8613582487372, please provide the following information:
Your full name
Phone number (including WhatsApp ID)
Email address
Farm location (country/region)
Total land area of your farm
Type of poultry: layer, broiler, or pullet
Expected bird capacity
Equipment you're interested in (poultry farm turnkey project, chicken cages, name of poultry farm equipment.)
