Quick Viewing Of H Type Automatic Broiler Battery Cage System

Current Status Of Commercial Broiler Farming Equipment Worldwide

In today's global commercial poultry industry, broiler farming has become increasingly automated and large-scale.

For commercial broiler farms with more than 10,000 birds, based on over 20 years of multi-country experience, our company has identified three mainstream H-type broiler cage designs that are widely accepted and preferred by local markets worldwide.

Three Main Types

1. Pull-out slat harvesting system

2. Chain-type automatic harvesting system

3. Without automatic harvesting system

There are equipped with automatic systems of feeding, drinking, manure cleaning, cage system and smart poultry system (optional accessories).

Some customers choose environmental control system such as automatic house lighting, heating device and ventilation systems. These are used in temperate and frigid climates, while in tropical climates they are applied as appropriate.

Application Guide Of 3 Types Of H Type Commercial Broiler Cage

To help you better understand these poultry equipment, we will present some short videos and real farm data.

Video 1: Taiyu (HK)’s Turnkey Case Of Pull-Out Slat Harvesting System

The video part of pull-out slat harvesting system are from 00:30s to 01:10s.

1. Key Advantages

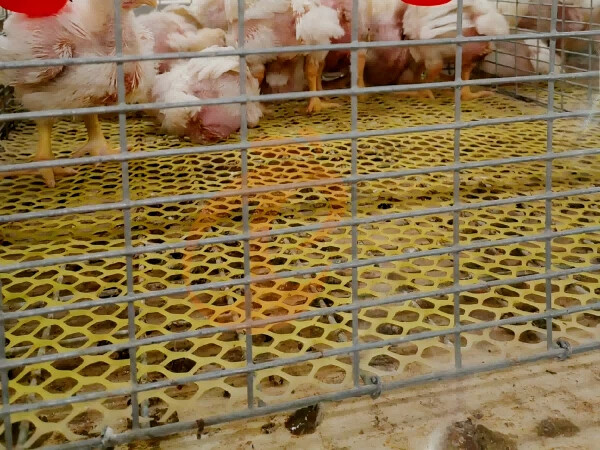

• Pull out the detachable slat tray, chickens fall onto the manure belt, to end lift device for collection

• Eliminates manual catching from each cage

• Reduces labor demand by 50–60%

• Achieves harvesting efficiency of 5,000–8,000 birds/hour

• Lowers injury rate to ≤2–3%

• Improves overall harvesting speed by 2–3 times

• Ideal for commercial poultry farms seeking higher efficiency

2. Price Range

The middle one in 3 types

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 135 8248 7372, contact us now.

Video 2: Taiyu (HK)’s Turnkey Case Of Chain-Type Automatic Harvesting System

The video part of chain type harvesting system are from 00:35s to 01:59s.

1. Key Advantages

• During harvesting, the side mesh rises, Chickens are transported to end lift device for collection

• Reduces labor demand by 50–70%

• Improves harvesting efficiency by 2–3 times

• Achieves a collection speed of 6,000–10,000 birds/hour

• Minimizes injury rate to ≤1–2%

• Suitable for large-scale commercial poultry farms (30,000+ birds)

2. Price Range

The highest one in 3 types

Video 3: Taiyu (HK)’s Turnkey Case Of Broiler Cages Without Automatic Harvesting System

1. Smart poultry system are from 00:03s to 00:06s.

2. Intelligent automatic timed and quantified feeding system are from 00:17s to 00:35s.

3. Ventilation systems are from 00:52s to 01:03.


1. Key Advantages

• Integrated automatic feeding, drinking, and manure cleaning systems, manual chicken collection

• Q235 steel with hot-dip galvanization or aluminum-zinc coating

• Service life of 15–20 years

• Fully automatic system reduces labor

2. Price Range

The lowest one in 3 types

Broiler Capacity In A House

These three types of equipment have basically the same broiler stocking capacity under the same chicken house dimensions.

1. 80 x 11 x 4.1-12 (L x W x H): 23,000 - 31,000 birds

2. 100 x 11 x 4.1-12 (L x W x H): 29,000- 40,000 birds

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 135 8248 7372, contact us now.

Why Choosing Taiyu (HK) Group

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

The Advantage Of Taiyu (HK) Broiler Cage

1. Quality and design of Taiyu (HK) broiler cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hong Kong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

• Our design and quality of IoT poultry farming system and poultry farm equipment based on European and USA standard.

• 24 hours Reception WhatsApp NO. : +8613582487372.

• All pictures (or videos) of this pages are the application of our in customers' poultry farm.

  Our technicians have rich experience in localizing poultry farms.

In many small to medium-sized broiler farms, even with the adoption of automatic H frame broiler chicken cage, farmers often retain manual harvesting.

This hybrid approach provides flexibility for small-batch sales and reduces equipment costs, while still benefiting from automatic feeding, watering, and manure removal for hygiene and efficiency.

Today, we dive into this "automated cage + manual harvesting" strategy. From feed silos to feeding, watering, manure handling, and final harvesting, we present detailed system parameters, real-life data, intuitive comparison tables, and real-world examples to help you evaluate the operational value of this approach.

"European Standard Automatic H Frame Broiler Chicken Cage For Sale"

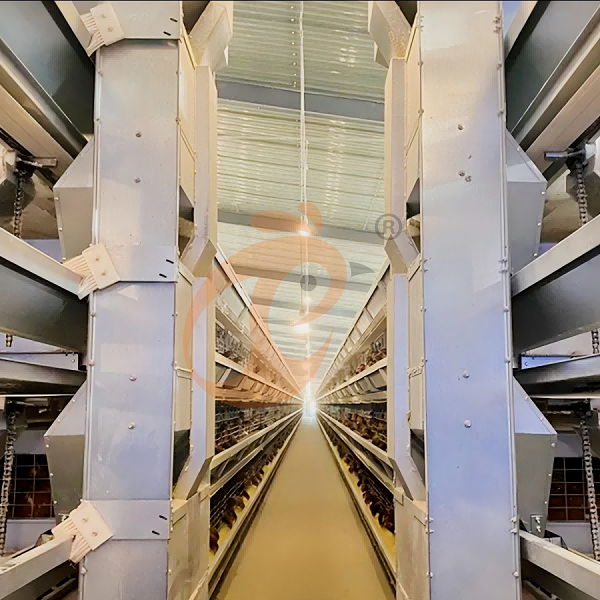

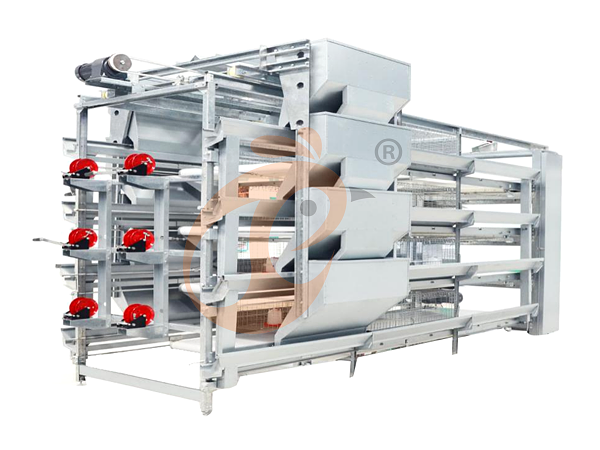

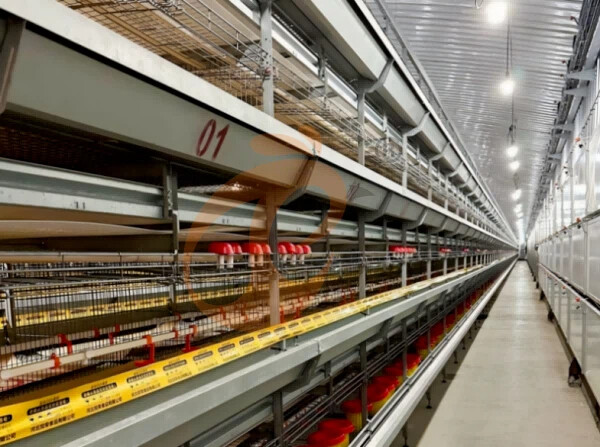

1. System Overview: A Full Panorama Of The H-Type Cage

The automatic H frame broiler chicken cage for sale by Best Poultry Farm is designed for high-density raising of broilers over a 45-day production cycle.

It is made from Q235 hot-dip galvanized steel with a coating thickness of about 275 g/m² and a lifespan of up to 25 years.

4 Tiers

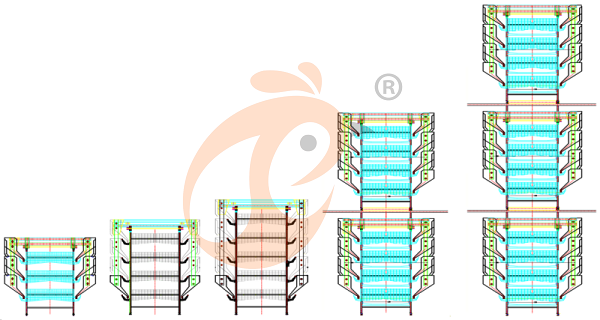

3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers, 12 Tiers

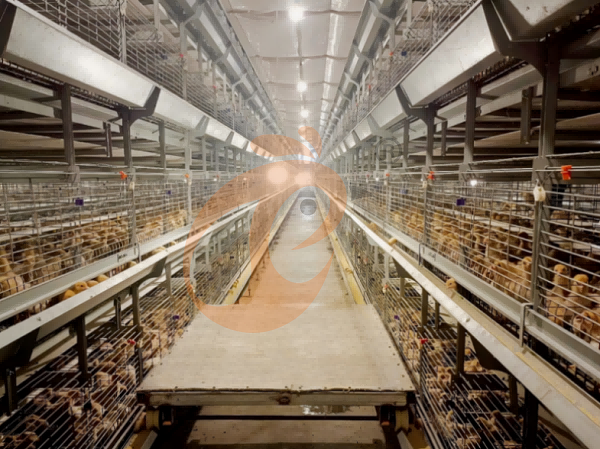

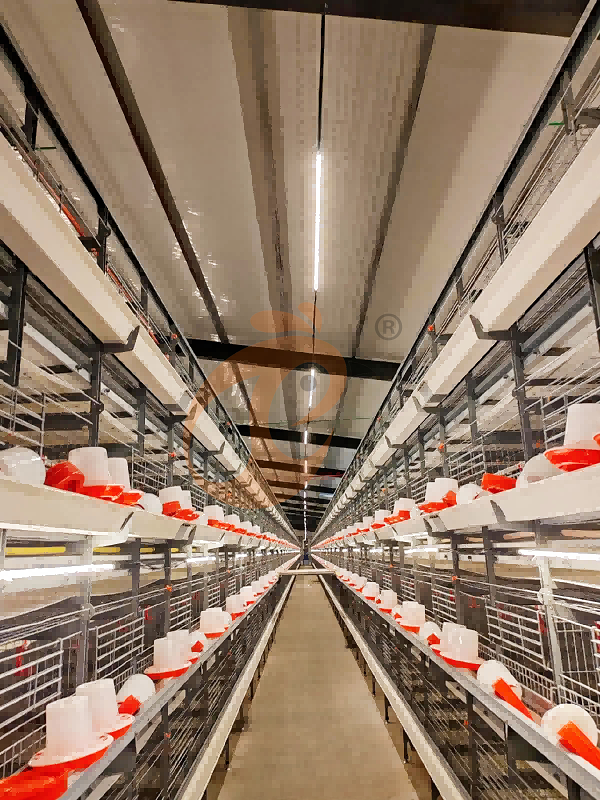

Layout Of Broiler Chicken Cage In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

According to industry pricing, each set of H-type cages costs approximately $130(Under EU standards), with a per-bird equipment cost of about $3–$5 depending on configuration.

"The Advantages Of Automatic H Frame Broiler Chicken Cage For Sale"

2. From Feed Silos To Harvest: Full-Process Operations Of The automatic H frame Broiler Chicken Cage For Sale

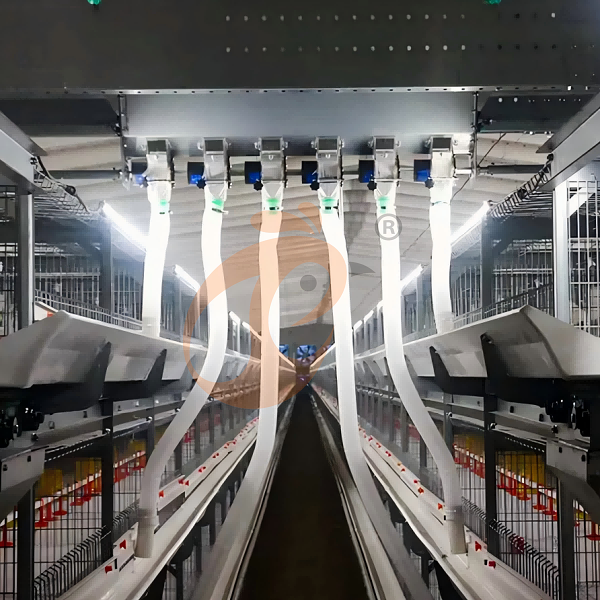

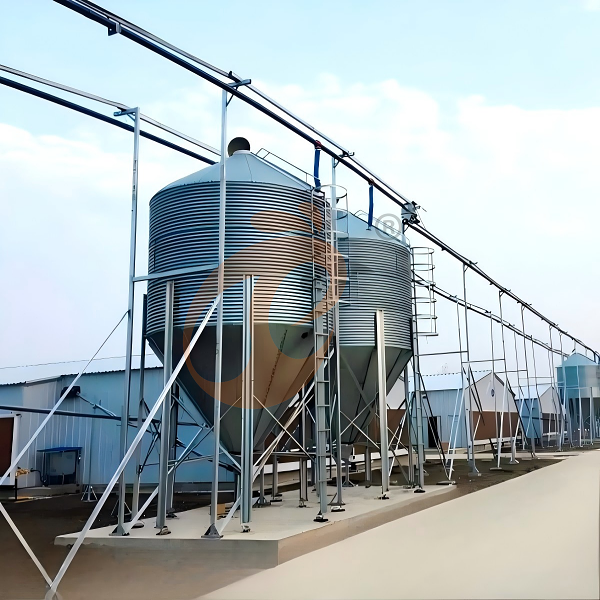

(1) 06:00 – Automatic Feed Replenishment

• Trigger: When silo feed level drops below 10%, the feed conveyor activates automatically.

• Speed: In typical chain-driven systems, the feed delivery speed reaches 25–35 m/min.

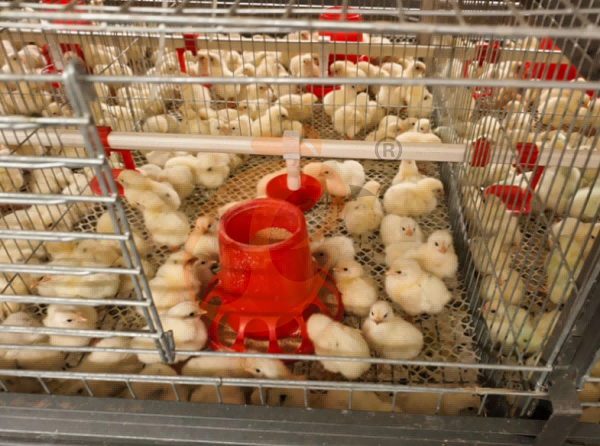

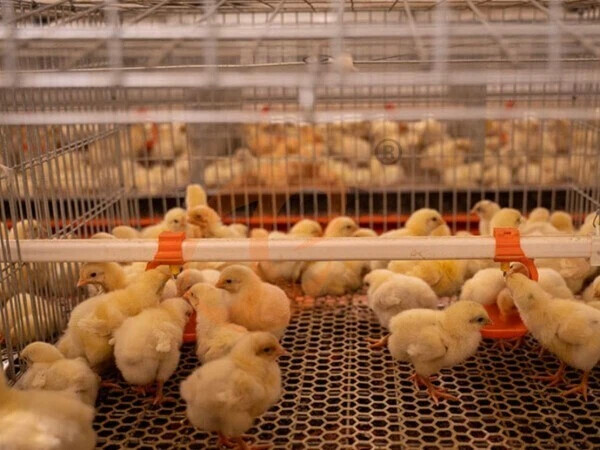

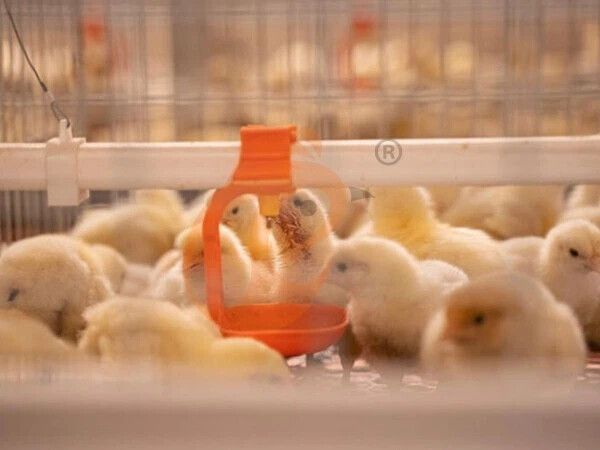

Small Feeder For Young Broiler

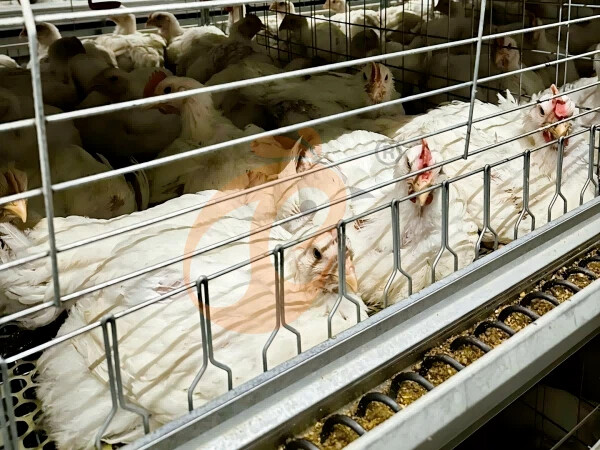

(2) 08:00 – Precision Feeding

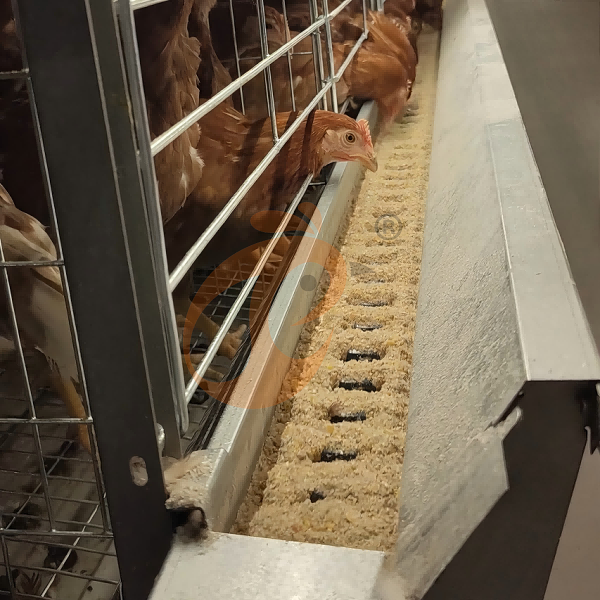

Each tier of the H-type cage system is equipped with a long feed trough.  Feed is distributed in small batches several times a day to ensure birds eat fresh feed and reduce waste.

Each group of 20–30 birds shares one section of the trough, and daily feed intake per bird is around 110–130 grams by the end of the growing cycle.

The system automatically controls feed timing and quantity to match different growth stages.

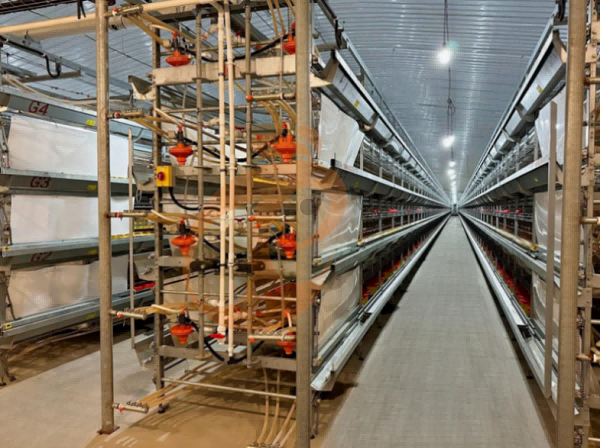

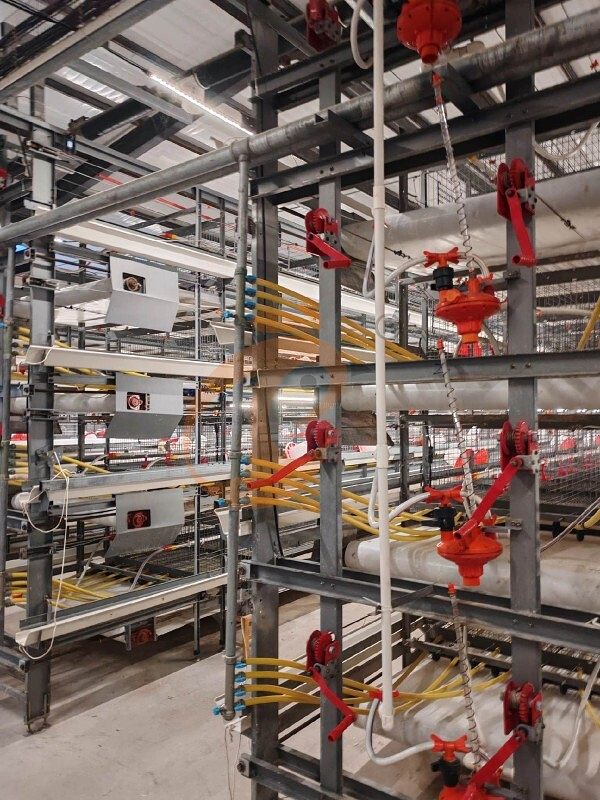

(3) Watering (Simultaneous)

• System Pressure: ~2.5 bar; each bird gets 300–350 ml daily.

• Water Usage: ~5–7 tons/day; <10% water waste.

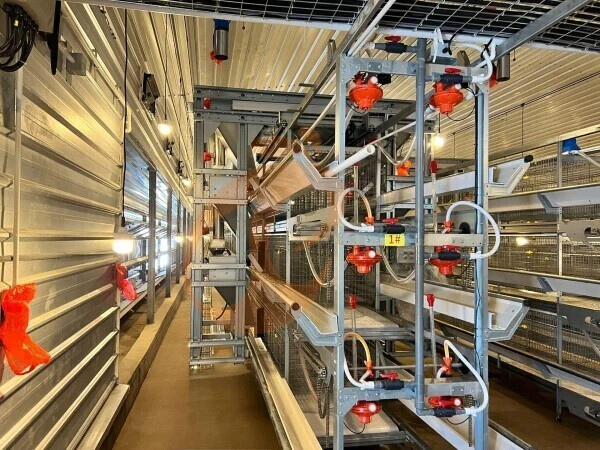

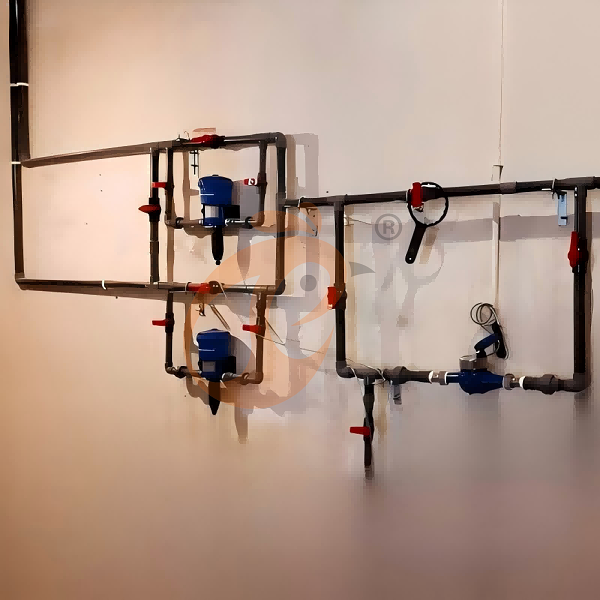

Beginning Device And Water Filter

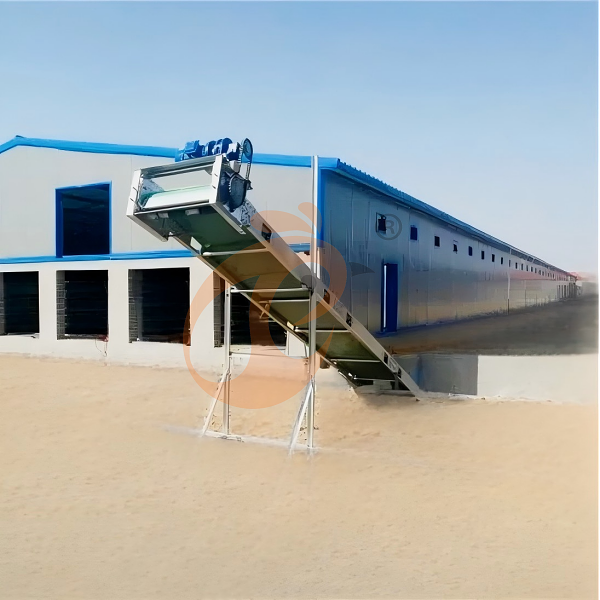

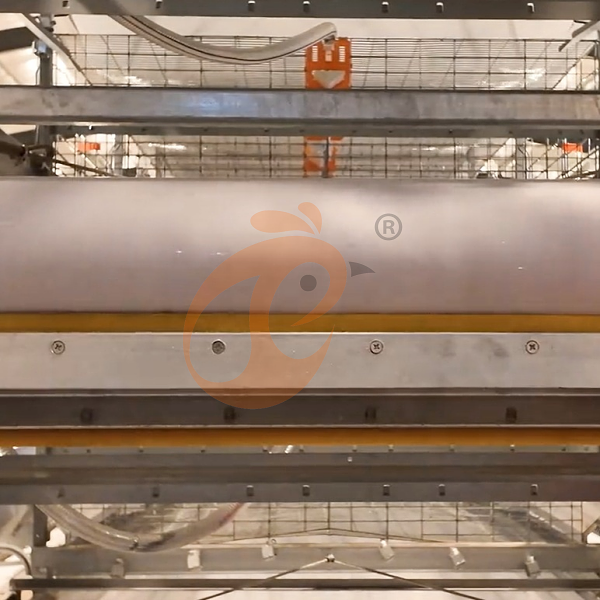

(4) 10:00 & 16:00 – Automatic Manure Removal

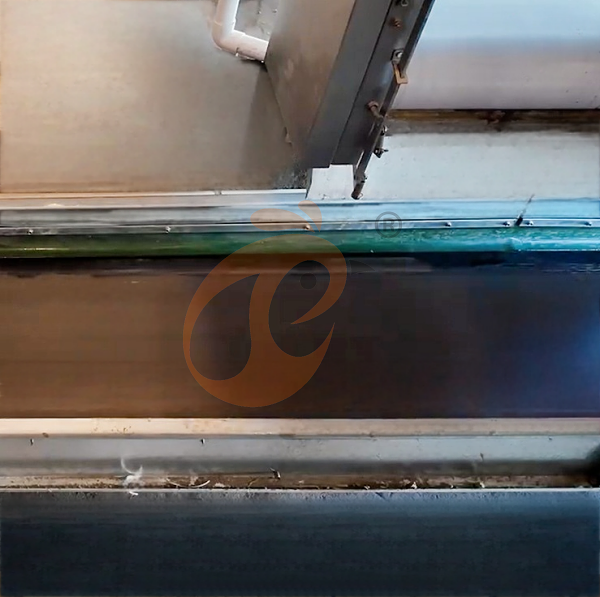

The system is equipped with a 1.0 mm polypropylene (PP) belt under each tier, supported by automatic alignment rollers and a galvanized frame for enhanced durability and precision

In standard practice, each tier produces 200–300 kg of manure per 10,000 birds each day (based on approximately 20 g per bird), implying a total daily output of ≈500–1,000 kg for a 50,000 bird facility—not multiple tons.

The belt runs 2~4 times daily, depending on the design layout; a single full-tier cleaning cycle typically takes 12–18 minutes.

(5) 12:00 – Environmental Monitoring & Adjustment

Full data collection

On site data screen

Light System: Auto-programmed based on growth stages 20 hours/day (30–40 lux) for starters (1–14 days) to promote feeding.

18 hours/day (10–15 lux) for growers (15–30 days); 16 hours/day (5–10 lux) for finishers (31–45 days) to balance weight gain and rest.

LED fixtures are evenly installed above each cage tier, with dimming function and fault alarms linked to the central control system.

(6) 16:00 – Inspection & Feed Refill

Maintenance: Staff check all systems and replenish ~2 tons of feed for night operations.

(7) 18:00 – Final Prep For Harvesting

• Feed Buffer: Add 1 ton of feed for night. Check for leaks/blockages.

• Data Sync: All operational data uploads to the cloud for harvest planning.

(8) Daily Operation Summary Of H-Type System

We creates a highly automated closed-loop operation, reducing labor dependence while enhancing feed conversion and health

"Tips Of Managing Poultry Farm And Poultry Farm Equipment"

3. Manual Harvesting Process Before Market Delivery

Despite the use of automatic H frame broiler chicken cage, Many workers often use manual labor for final harvesting.

Here's a breakdown of the preparation, execution, and efficiency metrics.

(1) Staff Preparation

• 48 Hours Prior: Feed is withheld to reduce stress and waste.

• Team Setup: 20–25 workers form a harvesting team, with designated loading lines and temporary crates.

• Tools: Each worker uses standard catch gear and gloves. Two technicians monitor injury rates and workflow.

(2) Manual Harvesting Steps

• Opening Cages: Workers open doors layer by layer, using an upright catch method for ~2.5 kg chickens.

• Crating: Chickens are calmly placed into crates ≥21 cm high to prevent wing injuries.

(3) Manual Vs. Automatic Harvesting Efficiency Comparison

4. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

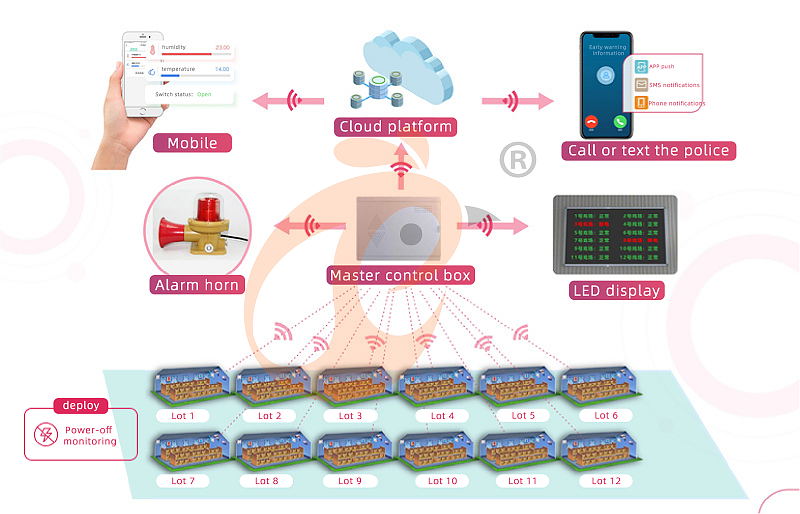

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(5) Humidity device gives a humidity 40%-70% to chicken according to its different age.

(6) Please contact us to give your exact solution according to your breeding quantity and farm condition.
