Our design and quality of brooder deep litter system and poultry farm equipment based on European and USA standard.
24 hours Reception WhatsApp NO. : +8618830120193.
All pictures (or videos) of this pages are the application of our brooder deep litter system in customers' poultry farm. Our technicians have rich experience in localizing poultry farms.
The brooder deep litter system is redefining modern poultry rearing by combining animal welfare, operational efficiency, and technology-driven management.
Designed specifically for small egg-laying pullets, this system supports natural chick behavior while maintaining precise environmental conditions, ensuring higher survival rates, better feed efficiency, and predictable economic outcomes.
"European Standard Brooder Deep Litter System"

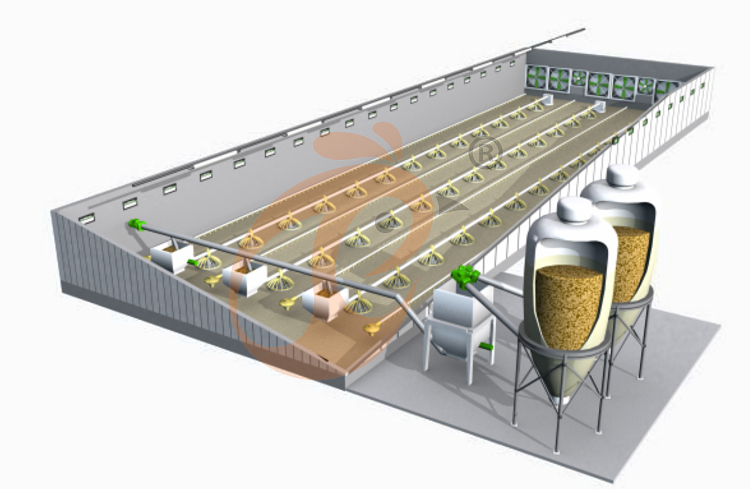

1. Overview Of Brooder Deep Litter System

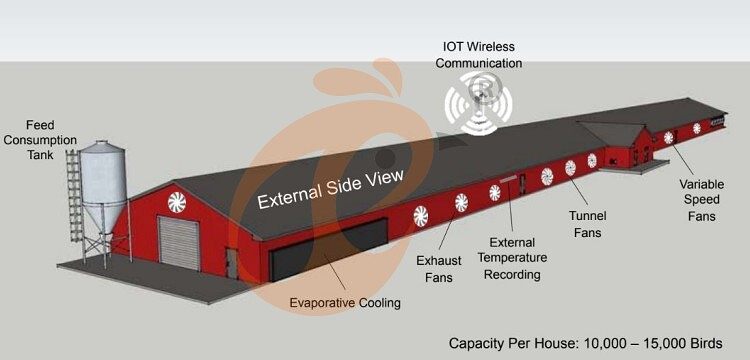

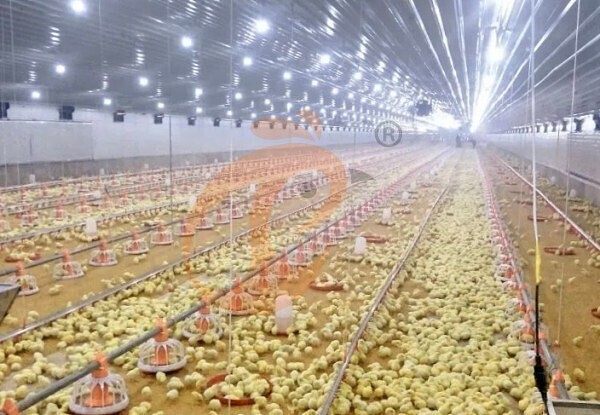

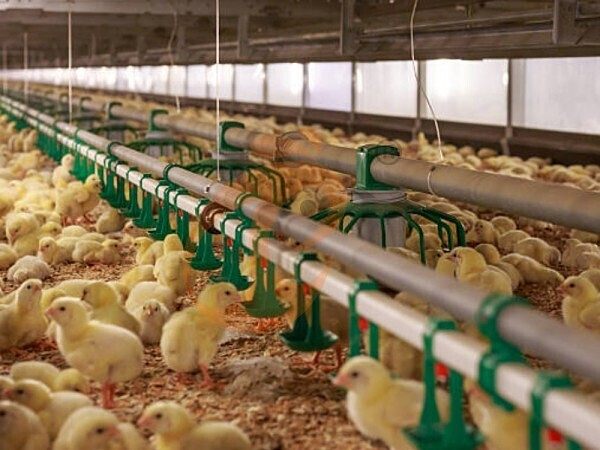

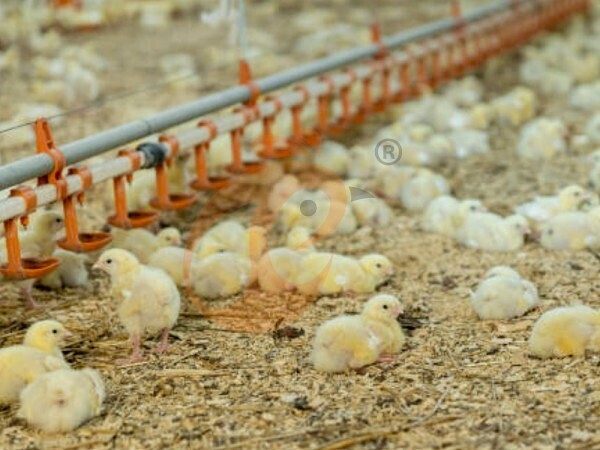

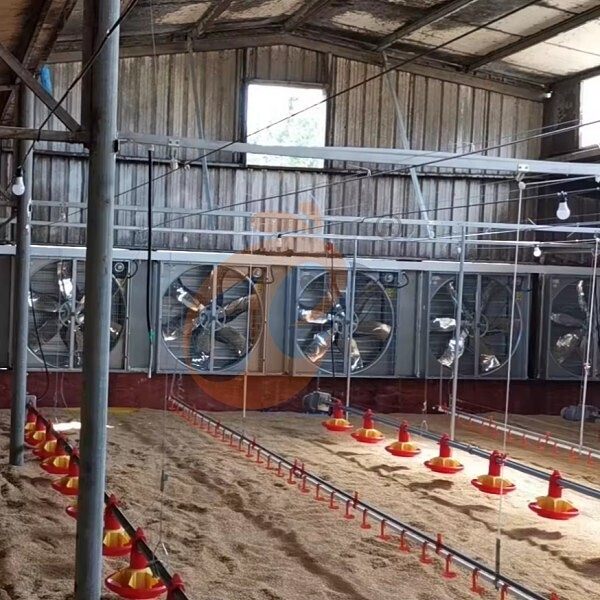

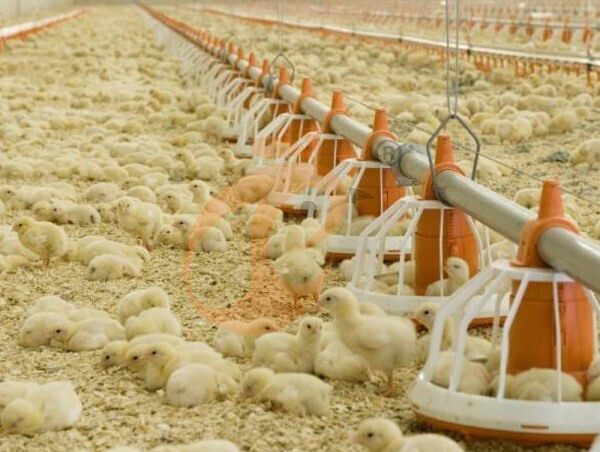

Deep Litter System After Installation
The brooder deep litter system maintains a continuously composting bedding layer that conserves heat, balances moisture, and supports microbial activity.
Unlike conventional floor pens, it encourages scratching, foraging, and exercise, while controlling ammonia levels through controlled ventilation.
(1) Key Structural Specifications Include
Floor: Compacted concrete with moisture barrier film
Litter material: Wood shavings, rice husk, or chopped straw (particle size 5–10 mm)
Ventilation: 2.5 m³/min per 1,000 chicks
Lighting: 20–40 lux, adjustable by growth phase
Temperature drop: 1°C every 2–3 days after day 5
(2) Technical Parameters Of Brooder Deep Litter System
Slide the table to view the complete content. The data is for reference only.
This design ensures uniform pullet chick growth and a stable early environment, reducing early mortality and stress.
"Tips Of Managing Poultry Farm And Poultry Farm Equipment"
2. Farm Application Case: Medium-Scale Pullet Operation
At a medium-scale pullet farm, a 40,000-bird unit implemented the brooder deep litter system to replace outdated floor pens. Over one year, the operation recorded:
(1) Mortality dropped from 4.2% → 2.7%
(2) Feed cost reduced by 11.8%
(3) Heating energy savings of 14%
(4) Labor requirement decreased by 23%
The litter, rich in nitrogen (2.5–2.8%), was repurposed as compost fertilizer, generating USD 0.04 per bird per cycle.
The farm reported a 5% improvement in uniformity, demonstrating the system's operational and environmental efficiency.
3. Economic And Performance Indicators
The brooder deep litter system delivers measurable economic benefits for pullet chick rearing.
Construction costs are 25–30% lower than slatted-floor or cage systems, and the composting litter naturally insulates, reducing heating energy consumption by 12–15%.
Slide the table to view the complete content. The data is for reference only.
These metrics ensure predictable returns and operational stability for pullet chick rearing.
"The Advantages Of Brooder Deep Litter System"
4. Welfare And Environmental Advantages

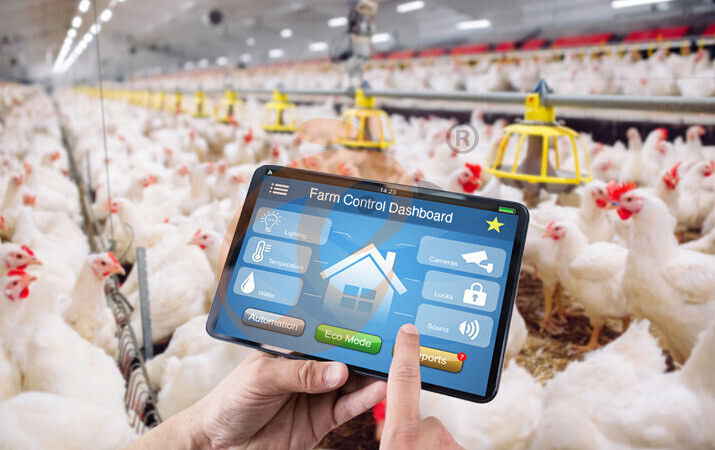

Poultry Data On APP

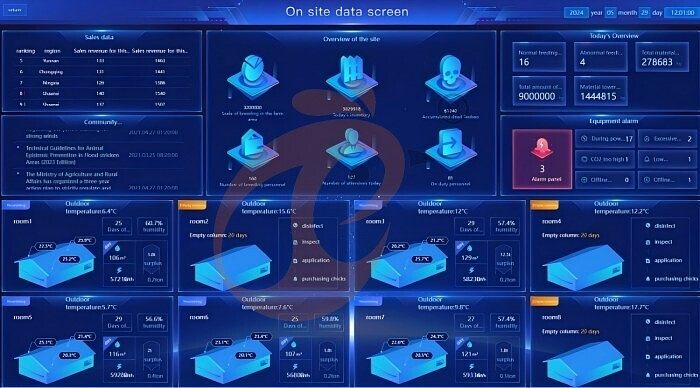

On Site Data Screen
The brooder deep litter system allows pullet chicks to express natural behaviors, reducing leg disorders, improving muscle tone, and supporting immunity. The litter converts organic waste into compost with minimal odor or pest issues, creating a sustainable production cycle.
Slide the table to view the complete content. The data is for reference only.
Maintaining these parameters ensures optimal welfare and productivity.

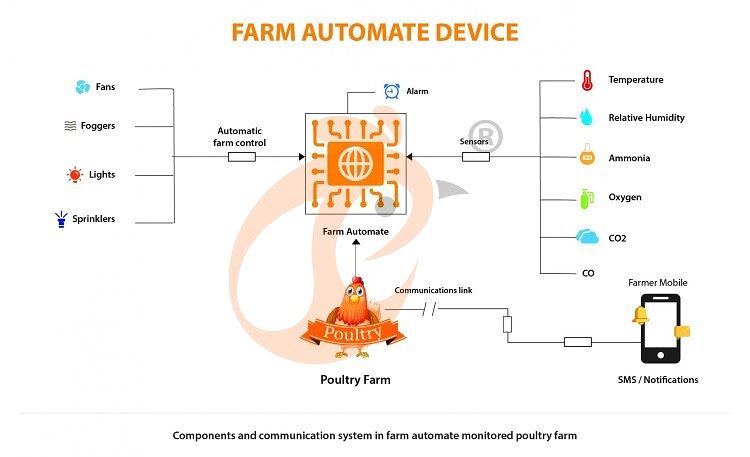

5. Intelligent Control & IoT Integration
Modern farms integrate IoT sensors and smart controls into the brooder deep litter system to optimize performance.
Vcloud systems monitor temperature, humidity, ammonia, CO₂, and light levels in real-time, delivering automatic alerts and remote control options.
(1) Key advantages
Auto-adjusting ventilation and heating based on sensor readings
AI-assisted feed schedule optimization
Real-time environmental alerts via smartphone
Predictive maintenance for heating units
(2) Case Example
In a 20,000-bird pullet unit, Vcloud sensors reduced heating gas use by 13%, maintained temperature deviation within 0.4°C, improved chick uniformity by 6%, and cut potential mortality by 1.2%.
This intelligent control system enhances profitability, labor efficiency, and environmental compliance, fully aligned with EU standards.
6. Farm Management Knowledge
For optimal results with the brooder deep litter system, farmers follow these key routines:

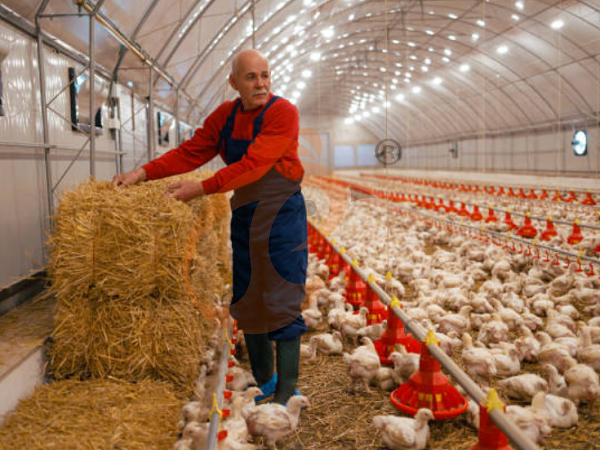

(1) Litter Management
Start with 10 cm bedding; add 2–3 cm every 2 weeks
Aerate litter weekly; replace completely after 12 months

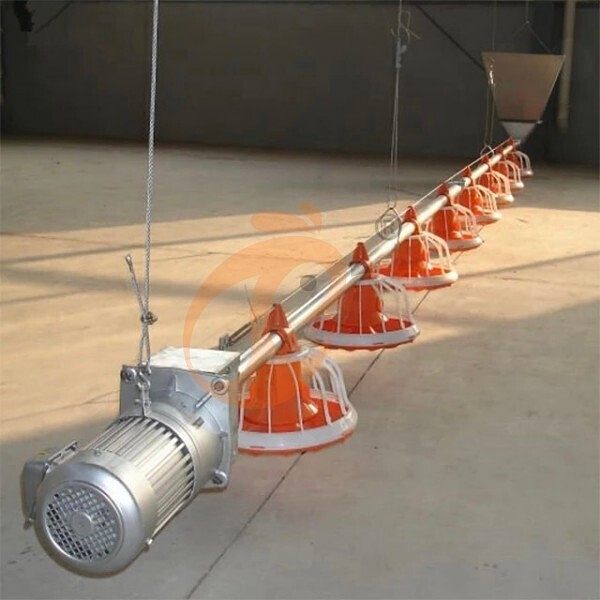

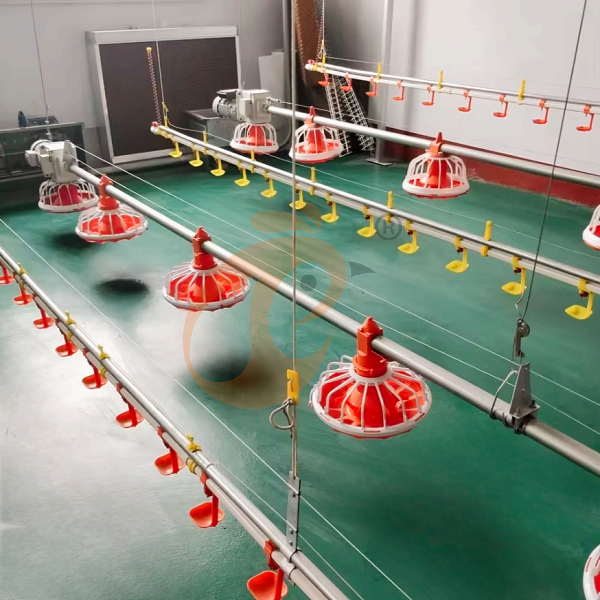

(2) Feeding System
Feed pan placement for uniform access
Adjust height incrementally as chicks grow
Optional automatic pan feeders for large houses
(3) Ventilation

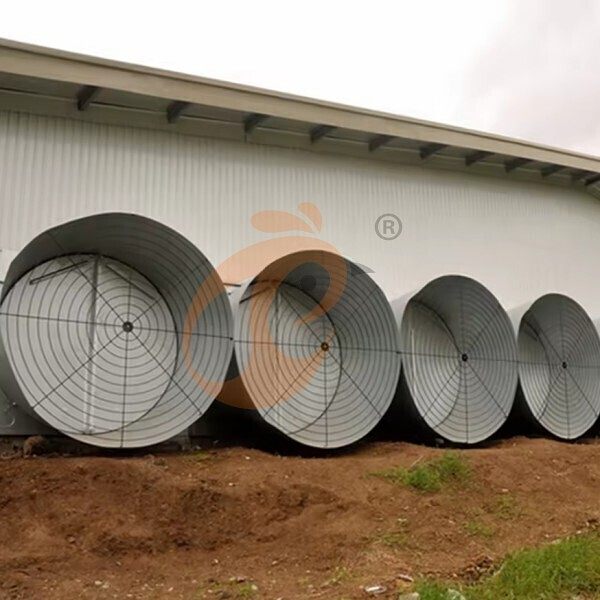

Sidewall fans 36 inches at 30 m intervals
Maintain airspeed ≥1.5 m/s

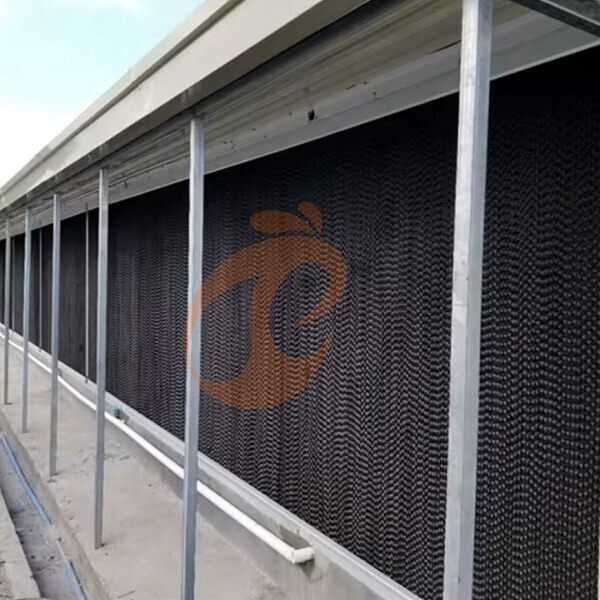

Cooling pads during hot climates
(4) Biosecurity
Entry disinfection mats
Weekly litter temperature check (>45°C indicates proper fermentation)
Safe dead bird disposal
These routines, combined with the system's intelligent control, ensure high survival, uniform growth, and efficient operations.
7. Investment And Return Projection
A 10,000-bird brooder deep litter system setup costs USD 24,500 (EU Standard). Operating cost per 45-day cycle: USD 13,800
(1) Revenue (1.9 kg × USD 1.2/kg × 10,000 birds): USD 22,800
(2) Net profit per cycle: USD 9,000
(3) Annual profit (6 cycles): USD 54,000
Additional revenue from compost sales: USD 0.04 per bird per cycle
ROI is typically achieved within 1.8 years, making this system a highly profitable investment for pullet rearing.
8. Packaging, Shipping And Installation
(1) Full or less container from China branch by sea.
(2) Local warehouse from branches of Ethiopia, Tanzania and Nigeria.
(3) Engineers with rich project experience are available to serve you at any time.
Package
Factory In Branch
9. Recommended Related Chicken Cage
